Phoenix PCTA-2000 Automatic Turntable Wrapping System
Phoenix PCTA-2000 Automatic Turntable Wrapping System
SKU:MAC-936694
Enhance productivity and safety with the Phoenix PCTA-2000 Wrapping System - perfect for high-speed, precise material handling.
Regular price
$15,699.99
Regular price
Sale price
$15,699.99
Unit price
per
Initiate Order
Phoenix PCTA-2000 Automatic Turntable Wrapping System
$15,699.99
Quantity: 1
Claim Your Seller Account
Phoenix PCTA-2000 Automatic Turntable Wrapping System
$15,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

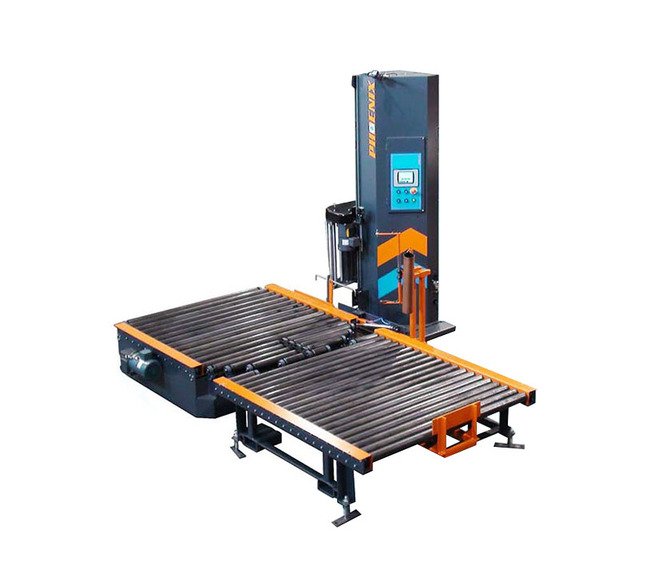

The Phoenix PCTA-2000 Automatic Turntable Wrapping System offers unparalleled efficiency in material handling for both portable and automatic turntable models. Its powered roller conveyor top and gravity conveyor seamlessly move loads post-wrapping, optimizing workflow. With features like variable speed controls, high production speed, and heavy-duty construction, this system ensures reliable performance at up to 35 pallets/hour. The pre-stretch carriage, cut & wipe system, and pushbutton controls enhance safety and user convenience for precise film application. Experience top-notch wrapping flexibility, speed, and reduced film usage with the Phoenix PCTA-2000.
Product Specifications
Control Motor Controls
Variable Frequency Drives
Control Top And Bottom Wrap Counters
Separate 1 to 9 Count
Control Updown Speeds Carriage
Separate
Features Features
Pushbutton ControlsThe Phoenix Pushbutton Control Panel provides many features most competitors offer as optionsIncluding: Independent Variable speed up/down carriage control.Separate 1 to 9 top and bottom wrap selectors.Multiple Wrap Patterns including Wrap Up/Down, Wrap up only and Top Cover Pause.Heavy-Duty TurntableConstant loading and unloading of heavy pallets on the turntable takes it's toll on this most critical element of the machine. Heavy-duty, robust construction and durable components are the choices we make when it comes to this part of the machine.High capacity table support casters containing roller bearings with easy access center grease nipple.Pre-Stretch CarriageA solid design concept both mechanically and electrically for a durable, dependable powered Pre-stretch film carriage with added operator safety in mind!The Phoenix film carriage design allows for the fastest and safest roll change in the industry. Simply open carriage gate, lay the film on the gate, and close the gate. IT'S THAT SIMPLE !Cut & Wipe SystemThe pneumatic controlled cut & wipe system automatically cuts the film and applies the film tail to the load. A timed impulse heat system, cold to the touch in seconds offers a safe cutting system.Pneumatic driven clamp holds the film tail during rotation. The clamp release the film tail at the end of the cycle and once the table stops, the film clamp is activated to close and hold the film for the cutting process.Nothing Beats the Best in Class!Flexible: Meets most Stretch Wrapping Applications and is customized to meet your exact requirements.Fast: Up to 12 RPM stretch wrapping speed. Fastest in its Class.Reduced film usage: Simple yet powerful controls provides flexibility and film savings. Separate 1-9 top and bottom wrap count provides up to 15% Savings.Superior Standard Features: Best in Class Wrapping Flexibility with Pushbutton Control provides all features as standardâ¦. Including those not available (or an upcharge) on competitive models.
Note Note
Specifications subject to change without notice.

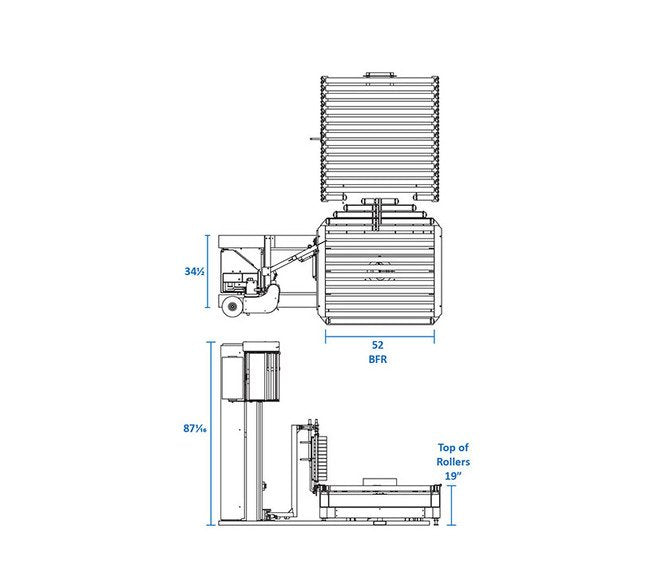

Performance Maximum Diagonal Load Size
71 in
Performance Maximum Load Size
50 x 50 x 80 in
Performance Maximum Load Weight
4000 lb | 1814 kg
Performance Production Speed
Up to 35 Pallets/hours
Service Requirements Alternating Current Ac Voltage
208 to 240 V
Service Requirements Current
20 A
Service Requirements Frequency
60 Hz
Service Requirements Number Of Phase
1
Service Requirements Pneumatic Service Requirements At 80 Pounds
3 ft³/min
Specifications Brand
Phoenix
Specifications Variable Load Handling Wrapping Speed
0 to 12 rpm
Specifications Warranty
10 Years-Frame | 3 Years-All Parts
