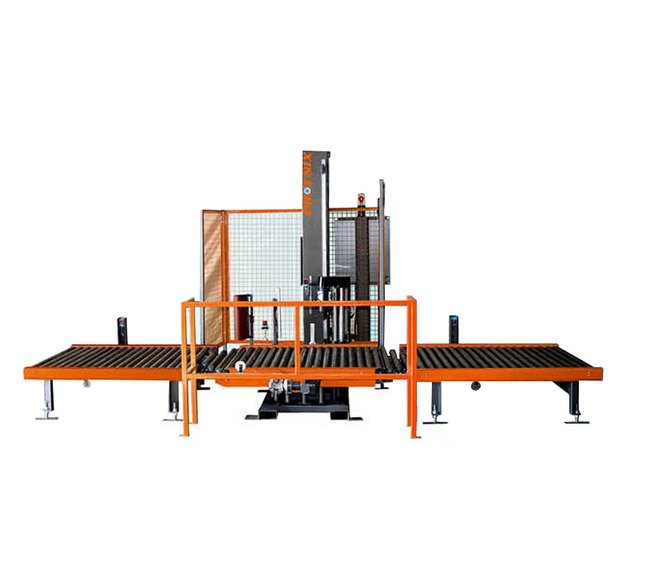

The Phoenix PCTA-2300 Automatic Rotary Turntable is a robust and versatile solution for stretch wrapping pallets efficiently and securely. With a variable load handling wrapping speed of 0 to 15 rpm and a production speed of 40 to 50 pallets per hour, it offers high-performance packaging capabilities. Featuring touchscreen controls, a durable ring bearing support system, and a pre-stretch carriage for film savings, this machine ensures precise wrapping with maximum efficiency. The cut & wipe system with pneumatic controls guarantees safe film cutting and application, enhancing operational safety. Ideal for tight-fitting applications, this turntable is customizable to suit various requirements, making it a top choice for both consumer and institutional buyers.
Product Specifications
Control Motor Controls
Variable Frequency Drives
Control Top And Bottom Wrap Counters
Separate 1 to 9 Count
Control Updown Speeds Carriage
Separate
Features Features
Touchscreen ControlsThe PCTA-2100 and PCTA-2003 comes complete with an Allen Bradley PLC & Operator Touch Screen.Including: NEMA 12 Control Enclosure 24 V Control System.Separate Carriage Up/Down Speed Control.Auto height Photo-Eye for Variable Load Height detection.Film Force to Load (Tension) Control.Ring Bearing DrivenThis precision ground bearing support is the same principal that is used for army tanks, cranes, and foundry equipment. Where large oversized structures need to be supported in extreme harsh environments.Although the use of such a bearing in a light application like a stretch wrapper is extreme over-engineering, it provides a clean bullet proof solution to the weight support and rotation of our table.Pre-Stretch CarriageA solid design concept both mechanically and electrically for a durable, dependable powered Pre-stretch film carriage with added operator safety in mind!The Phoenix film carriage design allows for the fastest and safest roll change in the industry.Simply open carriage gate, lay the film on the gate, and close the gate. IT'S THAT SIMPLE !Cut & Wipe SystemThe pneumatic controlled cut & wipe system automatically cuts the film and applies the film tail to the load. A timed impulse heat system, cold to the touch in seconds offers a safe cutting system.Pneumatic driven clamp holds the film tail during rotation. The clamp release the film tail at the end of the cycle and once the table stops, the film clamp is activated to close and hold the film for the cutting process.Nothing Beats the Best in Class!Fast: Up to 15 RPM stretch wrapping speed. Fastest in its Class.Reduced Film Usage: Simple yet powerful controls provides flexibility and film savings. Separate 1-9 top and bottom wrap count provides up to 15% Savings.Superior Standard Features: Best in Class Wrapping Flexibility with Touchscreen Control provides all features as standardâ¦. Including those not available (or an upcharge) on competitive models.
Note Note
Specifications subject to change without notice.

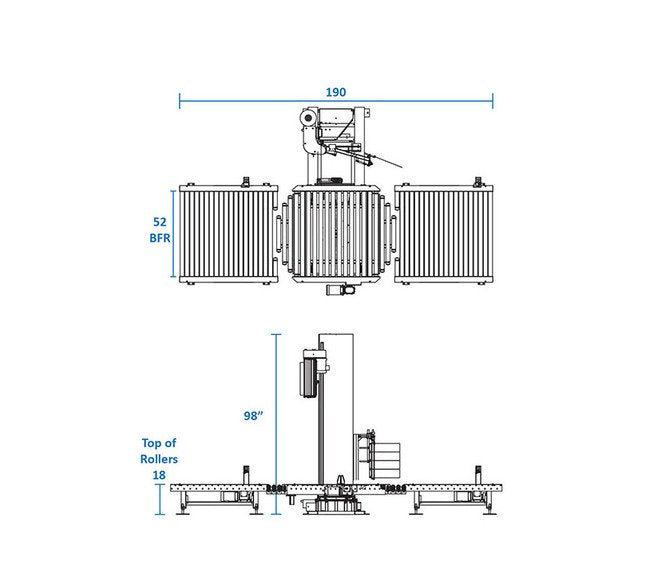

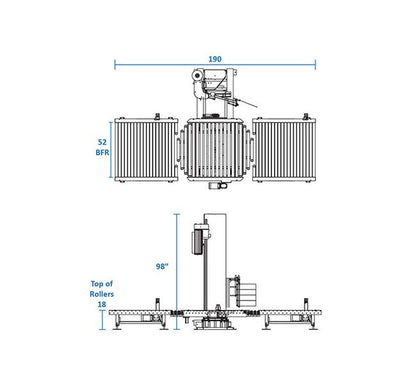

Performance Maximum Diagonal Load Size
71 in
Performance Maximum Load Size
50 x 50 x 80 in
Performance Maximum Load Weight
4000 lb | 1814 kg
Performance Production Speed
40 to 50 Pallets/hours
Service Requirements Alternating Current Ac Voltage
208 to 240 V
Service Requirements Current
20 A
Service Requirements Frequency
60 Hz
Service Requirements Number Of Phase
3
Service Requirements Pneumatic Service Requirements At 80 Pounds
3 ft³/min
Specifications Brand
Phoenix
Specifications Variable Load Handling Wrapping Speed
0 to 15 rpm
Specifications Warranty
10 Years-Frame | 3 Years-All Parts
