Phoenix PRRA-4000 High-Speed Rotary Ring Stretch Wrapping Machine
Phoenix PRRA-4000 High-Speed Rotary Ring Stretch Wrapping Machine
SKU:MAC-6f1f0d
Upgrade your wrapping efficiency with the high-speed Phoenix PRRA-4000 Rotary Ring Machine.
Regular price
$34,999.99
Regular price
Sale price
$34,999.99
Unit price
per
Initiate Order
Phoenix PRRA-4000 High-Speed Rotary Ring Stretch Wrapping Machine
$34,999.99
Quantity: 1
Claim Your Seller Account
Phoenix PRRA-4000 High-Speed Rotary Ring Stretch Wrapping Machine
$34,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

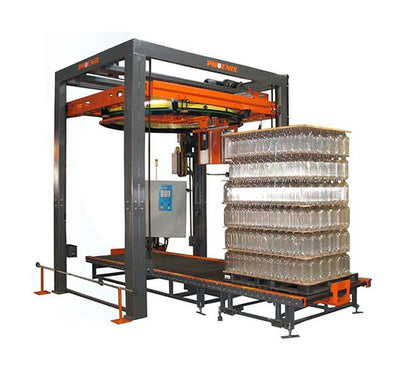

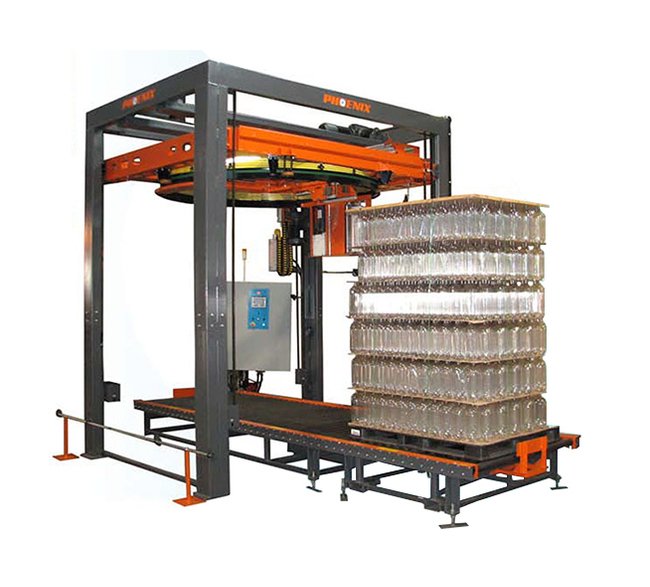

The Phoenix PRRA-4000 Automatic Rotary Ring Wrapping Machinery revolutionizes stretch wrapping efficiency with its innovative design. This advanced ring wrapper boasts a high wrapping speed of 40 rpm, handling loads up to 48 x 50 x 80 inches and 4000 lbs with ease. Its unique low mass rotation system not only ensures 24/7 reliability but also significantly reduces stretch film costs by up to 50% compared to traditional wrappers. With features like customizable wrap programs, top and bottom wrap counters, and rapid production speed of up to 120 pallets per hour, the PRRA-4000 is the ultimate solution for seamless, cost-effective wrapping operations.
Product Specifications
Control 3 Wrap Programs
Double Wrap | Standard Wrap | Top Banding
Control Motor Controls
Variable Frequency Drives
Control Top And Bottom Wrap Counters
Separate 1 to 9 Count
Control Updown Speeds Carriage
Separate
Features Features
Up to 50% Film SavingsThe Rotary Ring's unique cycle saves film that conventional wrappers apply unnecessarily due to design limitations.Tens of thousands of dollars in annual film saving can be realized.With PRRA Rotary Ring reducing film costs by as much as 50%, payback over conventional wrappers can be had in as little as 3 years.Compact FootprintThe PRRA takes 25% less space than conventional rotary arm style wrappers. Designed to be the smallest footprint in the industry, the PRRA will solve many space constraint applications where fitting into an existing space was the main issue.Do not waste premium floor space. The PRRA fits where conventional wrappers can't fit.More FlexibilityBesides the std. wrap cycle available with conventional wrappers, the PRRA Rotary Ring wrapper can perform cycles like:Top Banding: Applies layers of film to the top only for local shipments or on stable loads that do not need full wrap.Double Stacked Cycle: Wraps 2 loads individually which enter the wrapper stacked one on top of the otherHigh Speed ReliabilityDesigned specifically for 24 - 7 operation due to the PRRA Rotary Ring's low mass rotation system.The PRRA works effortlessly as it rotates only what is requiredâ¦the carriage.Up to 30% faster cycle time with the same RPM due to its time saving wrapping sequence. Fewer revolutions results in less wear & tear and increased reliability.Nothing Beats the Best in Class!Faster: Rotary Ring design is much faster that conventional turntable and rotary arm designs.User Friendly: Minor assembly results in quick installation, and commercially available parts keep things simple.Ultimate Controls: Simple yet powerful controls provides flexibility and film savings.Reduced Maintenance: Simple design with few moving parts reduces system stress and strain while eliminating unnecessary revolutions.
Note Note
Specifications subject to change without notice.

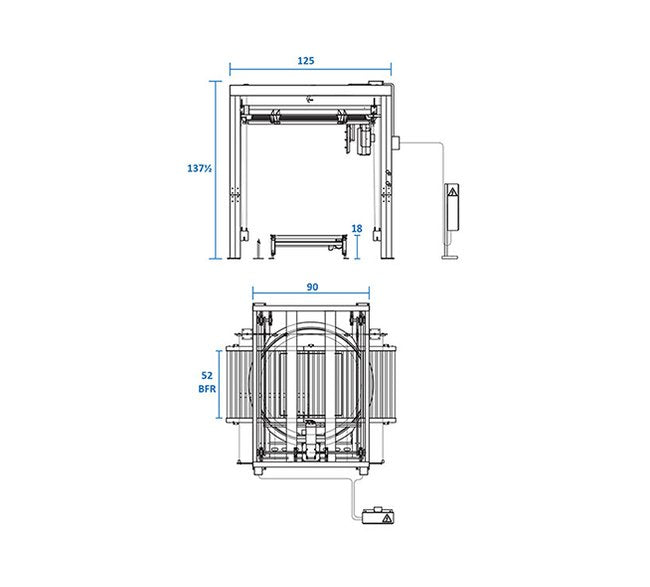

Performance Maximum Load Size
48 x 50 x 80 in
Performance Maximum Load Weight
4000 lb | 1814 kg
Performance Production Speed
Up to 120 Pallets/hours
Service Requirements Alternating Current Ac Voltage
460 V
Service Requirements Current
20 A
Service Requirements Frequency
60 Hz
Service Requirements Number Of Phase
3
Service Requirements Pneumatic Service Requirements At 80 Pounds
3 ft³/min
Specifications Brand
Phoenix
Specifications Load Handling Wrapping Speed
40 rpm
Specifications Type
Ring
Specifications Warranty
10 Years-Frame | 3 Years-All Parts
