Phoenix PRTA 2150 Automatic Rotary Stretch Wrapping Machine
Phoenix PRTA 2150 Automatic Rotary Stretch Wrapping Machine
SKU:MAC-876e67
Enhance wrapping efficiency with the Phoenix PRTA 2150—ideal for light or unstable loads. Variable tension & speed for precise wrapping.
Regular price
$17,499.00
Regular price
Sale price
$17,499.00
Unit price
per
Initiate Order
Phoenix PRTA 2150 Automatic Rotary Stretch Wrapping Machine
$17,499.00
Quantity: 1
Claim Your Seller Account
Phoenix PRTA 2150 Automatic Rotary Stretch Wrapping Machine
$17,499.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

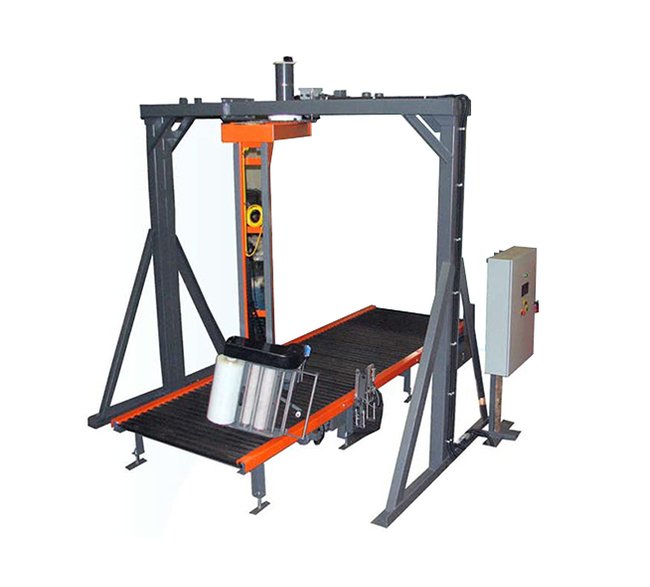

The Phoenix PRTA 2150 Automatic Rotary Stretch Wrapping Machine is designed for wrapping light or unstable loads with precision and efficiency. Its durable all-structural steel construction and HSS tubing arm ensure reliability. With variable wrap tension and speeds up to 15 rpm, this machine offers a versatile solution for various wrapping applications. Featuring innovative film cost-saving measures, safety enhancements like a pneumatic cut & wipe system, and maintenance-friendly design, the Phoenix PRTA 2150 is a top choice for optimizing wrapping processes. With a robust production speed of up to 60 pallets/hour and a maximum load weight capacity of 4000 lb, this machine is a powerhouse for any material handling operation.
Product Specifications
Control 3 Wrap Programs
Top Cover Pause | Wrap Up & Wrap Up/Down
Control Top And Bottom Wrap Counters
Separate 1 to 10 Count
Control Updown Speeds Carriage
Separate
Features Features
Film Cost SavingsMultiple wrap cycles apply film only where required.Separate up/down speeds save time & up to 10% reduction of stretch film costs.Separate top/bottom wrap selections eliminate wasted revolutions of film.Film saving logic eliminates film waste.Safety MeasuresTimed, impulse cut wire is only ON when cutting and cold to the touch in seconds.Not hazardous to operator.No permanent, constant heat source.Pneumatic cut & wipe system with no mechanical drive thus, nothing gets caught in mechanical system.Maintenance Wise2-1/2" Dia. Rollers on 3-3/4" center spacing. Other sizes available.18" T.O.R height (Top of Roller height) standard. Other heights available.Every roller driven, loop to loop design.Load sequencing programming included.Cast iron bearing support.Durable DesignVariable Speed Drive Controlled Turntable Drive Motor.Ring Bearing Drive Support (Precision)#50; ANSI Chain Drive for Low Maintenance & Reliable OperationTop quality commercially available components.Meets all Cdn & US standards with cUL Approval.Nothing Beats the Best in Class!Auto Cut, Wipe & Film Tail Treatment: Pneumatic system cuts (not tears), wipes, and brushes film to load...no film tail!Heavier: Built to last...the 4000 lbs. std. weight capacity is the heaviest in its class.Faster: Up to 25RPM, it's the fastest wrapping speed in its class. Wrap more loads...faster.Ultimate Control: Best in Class controls. Simple yet powerful controls offer wrap flexibility and film savings. Auto Cut & Wipe, Heavier & Fasterâ¦Best in Class!
Note Note
Compact machine design for limited space plant locations.
Performance Maximum Diagonal Load Size
80 in
Performance Maximum Load Size
52 x 52 x 80 in
Performance Maximum Load Weight
4000 lb | 1814 kg
Performance Production Speed
Up to 45 to 60 Pallets/hours
Service Requirements Alternating Current Ac Voltage
230 V
Service Requirements Current
20 A
Service Requirements Frequency
60 Hz
Service Requirements Number Of Phase
3
Service Requirements Pneumatic Service Requirements At 80 Pounds
3 ft³/min
Specifications Brand
Phoenix
Specifications Type
Ring
Specifications Variable Load Handling Wrapping Speed
15 rpm
Specifications Warranty
10 Years-Frame | 3 Years-All Parts
Specifications Wrap Tension
Variable
