Phosphate Heaters - DAS Series
Phosphate Heaters - DAS Series
SKU:HEA-0fcaf0
DAS Series Phosphate Heaters - Superior chemical resistance, rugged construction, outstanding performance. CE certified.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Phosphate Heaters - DAS Series
$249.99
Quantity: 1
Claim Your Seller Account
Phosphate Heaters - DAS Series
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DAS Series Phosphate Heaters are purpose-built for iron, zinc, and manganese phosphate tanks, offering superior chemical resistance and outstanding performance. Constructed with heavy-duty 316 stainless steel, these heaters feature low watt densities to minimize scaling. The corrosion-resistant head and safety features ensure durability and reliability. With options ranging from 1,000 to 10,000 watts and voltages from 120 to 600 volts, these heaters are versatile and efficient. Certified with CE, they meet high industry standards for industrial heating applications.
Product Specifications
Specifications Certifications
CE
Specifications Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: For use in iron, zinc and manganese phosphate tanks.EXTREMELY RUGGED CONSTRUCTION: Schedule 40, heavy wall, 316 stainless steel sheath withstands scaling better than traditional heaters.OUTSTANDING PERFORMANCE: Low watt densities of 23 watts per square inch (3.5 w/cm2) helps to minimize scaling while only utilizing the space required for a full watt density heater.CORROSION RESISTANT HEAD: Rugged cast steel terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in. Replaceable P4 protector standard for solutions up to 230°F (110°C).Non-floating construction.CERTIFICATIONS: CE (except 600 volts).SIZES: 1,000 watts to 10,000 watts.VOLTAGES: 120 to 600 volts. Single phase standard, three phase available.OPTIONS AVAILABLE (consult factory):Thermal protectors: Replaceable high temperature fuses or resettable P2 bi-metal switches in two temperature ranges.Special configurations and lengths.Longer wire and conduit lengths.Temperature and level controls sized to match the heater.

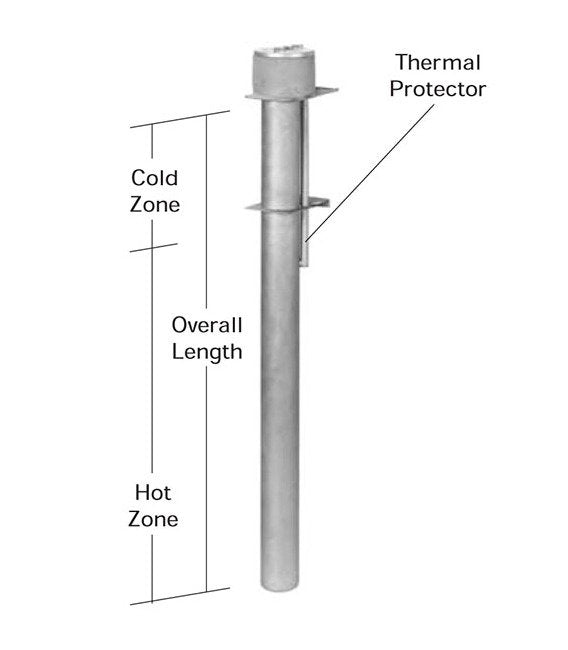

Specifications Hot Zone
7 " | 180 mm
Specifications Manufacturer
Process Technology
Specifications Material
Phosphate
Specifications Note
NOTE: Do not use in any aluminum reactive alkaline solutions.
Specifications Overall Length
11 " | 280 mm
Specifications Phase
Single (Standard) | Three
Specifications Series
DAS Series
Specifications Shipping Weight
17.0 Pound
Specifications Volts
240 V
Specifications Watts
1000 W
Specifications Weight
17.0 lbs | 8.0 kg
