Phosphate Immersion Heater - DAS Series
Phosphate Immersion Heater - DAS Series
SKU:HEA-b371d2
Rugged DAS Series Phosphate Immersion Heater for iron, zinc, and manganese phosphate tanks, delivering superior chemical resistance and exceptional performance.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Phosphate Immersion Heater - DAS Series
$599.99
Quantity: 1
Claim Your Seller Account
Phosphate Immersion Heater - DAS Series
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DAS Series Phosphate Immersion Heater is purposefully designed for iron, zinc, and manganese phosphate applications, offering exceptional performance and durability. Constructed with a rugged Schedule 40, heavy wall 316 stainless steel sheath, this heater provides superior chemical resistance and minimizes scaling with its low watt density design. Certified with CE compliance, it features a corrosion-resistant head, grounded construction, and built-in thermal protector for safety. From 1,000 to 10,000 watts and voltages ranging from 120 to 600 volts, this single-phase standard heater can be customized with various options like thermal protectors and control configurations, meeting the specific requirements of industrial processes.
Product Specifications
Specifications Certifications
CE
Specifications Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: For use in iron, zinc and manganese phosphate tanks.EXTREMELY RUGGED CONSTRUCTION: Schedule 40, heavy wall, 316 stainless steel sheath withstands scaling better than traditional heaters.OUTSTANDING PERFORMANCE: Low watt densities of 23 watts per square inch (3.5 w/cm2) helps to minimize scaling while only utilizing the space required for a full watt density heater.CORROSION RESISTANT HEAD: Rugged cast steel terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in. Replaceable P4 protector standard for solutions up to 230°F (110°C).Non-floating construction.CERTIFICATIONS: CE (except 600 volts).SIZES: 1,000 watts to 10,000 watts.VOLTAGES: 120 to 600 volts. Single phase standard, three phase available.OPTIONS AVAILABLE (consult factory):Thermal protectors: Replaceable high temperature fuses or resettable P2 bi-metal switches in two temperature ranges.Special configurations and lengths.Longer wire and conduit lengths.Temperature and level controls sized to match the heater.

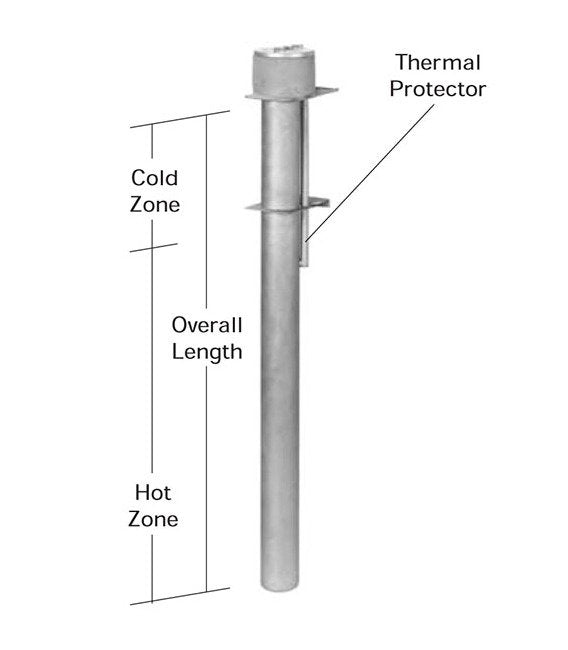

Specifications Hot Zone
62 " | 1575 mm
Specifications Manufacturer
Process Technology
Specifications Material
Phosphate
Specifications Note
NOTE: Do not use in any aluminum reactive alkaline solutions.
Specifications Overall Length
71 " | 1805 mm
Specifications Phase
Single (Standard) | Three
Specifications Series
DAS Series
Specifications Shipping Weight
64.0 Pound
Specifications Volts
240 V
Specifications Watts
10000 W
Specifications Weight
64.0 lbs | 30.0 kg
