Phosphate Immersion Heaters - DAS Series
Phosphate Immersion Heaters - DAS Series
SKU:HEA-dba3b8
Rugged DAS Series Phosphate Immersion Heaters for iron, zinc, and manganese phosphate tanks. Superior chemical resistance and outstanding performance. CE certified.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Phosphate Immersion Heaters - DAS Series
$699.99
Quantity: 1
Claim Your Seller Account
Phosphate Immersion Heaters - DAS Series
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DAS Series Phosphate Heaters are expertly designed for iron, zinc, and manganese phosphate tank applications. With a rugged construction featuring 316 stainless steel sheath and superior chemical resistance, these immersion heaters offer outstanding performance with low watt densities to minimize scaling. Safety features like grounded construction and a built-in thermal protector ensure reliable operation. Certified with CE, these heaters come in various wattages and voltages, with options for thermal protectors and special configurations to suit diverse industrial needs.
Product Specifications
Specifications Certifications
CE
Specifications Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: For use in iron, zinc and manganese phosphate tanks.EXTREMELY RUGGED CONSTRUCTION: Schedule 40, heavy wall, 316 stainless steel sheath withstands scaling better than traditional heaters.OUTSTANDING PERFORMANCE: Low watt densities of 23 watts per square inch (3.5 w/cm2) helps to minimize scaling while only utilizing the space required for a full watt density heater.CORROSION RESISTANT HEAD: Rugged cast steel terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in. Replaceable P4 protector standard for solutions up to 230°F (110°C).Non-floating construction.CERTIFICATIONS: CE (except 600 volts).SIZES: 1,000 watts to 10,000 watts.VOLTAGES: 120 to 600 volts. Single phase standard, three phase available.OPTIONS AVAILABLE (consult factory):Thermal protectors: Replaceable high temperature fuses or resettable P2 bi-metal switches in two temperature ranges.Special configurations and lengths.Longer wire and conduit lengths.Temperature and level controls sized to match the heater.

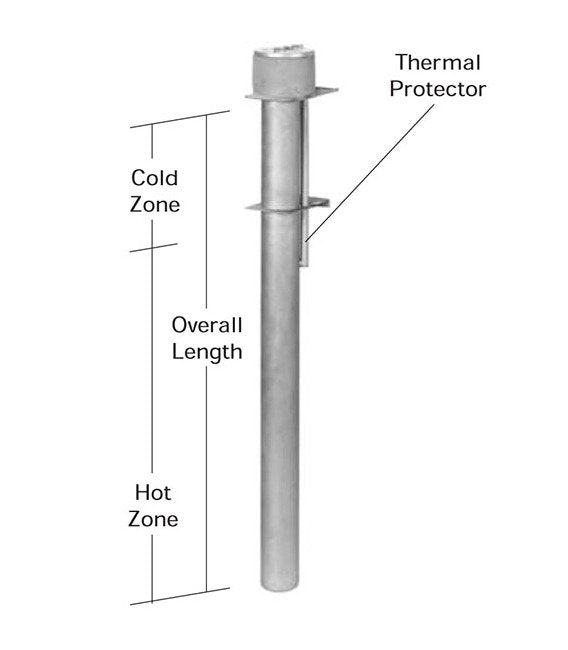

Specifications Hot Zone
49 " | 1245 mm
Specifications Manufacturer
Process Technology
Specifications Material
Phosphate
Specifications Note
NOTE: Do not use in any aluminum reactive alkaline solutions.
Specifications Overall Length
59 " | 1500 mm
Specifications Phase
Single (Standard) | Three
Specifications Series
DAS Series
Specifications Shipping Weight
58.0 Pound
Specifications Volts
240 V
Specifications Watts
8000 W
Specifications Weight
58.0 lbs | 27.0 kg
