piD-TECH® eVx™ 20 ppm Photoionization Sensor
piD-TECH® eVx™ 20 ppm Photoionization Sensor
SKU:PRO-a00f85
Award-winning piD-TECH® eVx™ 20 ppm Photoionization Sensor for rapid and accurate VOC detection in ambient air.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
piD-TECH® eVx™ 20 ppm Photoionization Sensor
$499.99
Quantity: 1
Claim Your Seller Account
piD-TECH® eVx™ 20 ppm Photoionization Sensor
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The piD-TECH® eVx™ 20 ppm Range Photoionization Sensor is an award-winning, patented sensor known for its reliable VOC detection capabilities. With a detection limit of 1.5 ppb and rapid response time of <4 seconds, this sensor is ideal for detecting organic compounds in ambient air. Operating within a wide temperature range and with certifications such as UL, ATEX, and IECEx, the eVx™ sensor offers both affordability and intrinsic safety, making it a trusted choice for industrial safety applications.
Product Specifications
Accessories Accessories
Spare Part Number - 042-930Description - Cap with KeySpare Part Number - 042-929Description - SpacerSpare Part Number - 043-371Description - 1 µm, Teflon, Top Filter, LargeSpare Part Number - 037-591Description - 10 µm, Cloth, Bottom FilterSpare Part Number - 043-273Description - Detector Ionization Cell AssemblySpare Part Number - 043-257Description - piD-TECH® 10.6eV Lamp AssemblySpare Part Number - 044-657Description - piD-TECH® 10.6eV Lamp Assembly individually packagedSpare Part Number - 043-627Description - piD-TECH® 10.6eV Lamp AssemblyFor Green 10,000 ppm SensorSpare Part Number - 043-628Description - piD-TECH® 10.6eV Lamp AssemblyFor Blue 2 ppm SensorSpare Part Number - 043-271Description - piD-TECH® Maintenance Kit-2 ea Polishing Disc-2 ea Teflon Cloth Filter-2 ea Teflon Filter-1 ea Padded SwabSpare Part Number - 044-515Description - piD-TECH® Sensor Rebuild Kit (5% DISCOUNT)-2 ea piD-TECH® 10.6eV Lamp Assembly-1 ea Detector Ionization Cell Assembly-1 ea 1 µm, Teflon, Top Filter, Large-1 ea 10 µm, Cloth, Bottom Filter
Additional Features Additional Features
OEM Photoionization SensorsIndustry standard sensor for safety applicationsIntrinsically safe: UL, CAN/CSA, ATEX, IECEx certified. Drop in with no external protection circuitry requiredEasily cleaned and field serviced, no tool requiredAffordable sensor technology for safety, compliance, and air quality monitoring.
Additional Information Additional Information

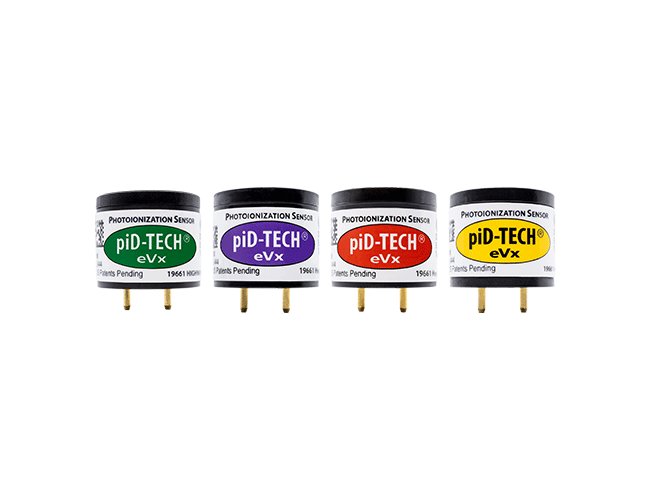

The eVx⢠sensor is an affordable sensor that is easy to integrate and intrinsically safe. These sensors are proven solutions that are ideal for the industrial safety applications.The piD-TECH® eVx⢠comes in four ranges depending upon application requirements:piD-TECH® eVx⢠-10.6 eV Green 0-10,000 ppmpiD-TECH® eVx⢠-10.6 eV Purple 0-2,000 ppmpiD-TECH® eVx⢠-10.6 eV Red 0-200 ppmpiD-TECH® eVx⢠-10.6 eV Yellow 0-20 ppmOur dedicated sensor engineers will assist you in integrating our intrinsically safe photoionization sensor into your products, reducing the time and cost associated with product development.
Applications Applications
Environmental MonitoringAMC in CleanroomsAir Quality MonitoringFugitive Emission MonitoringToxic Gas MonitoringIndoor Air QualityLeak DetectionOEM PID Sensors
Certifications And Approvals Europe
ATEX directives: EN 60079-0:2018, EN 60079-11:2012; II 1 G Ex ia IIC Ga, -20 oC - 60 oC ATEX certificates: DEMKO 13 ATEX 1304446U Rev. 8; C E 0539
Certifications And Approvals Other
IECEx Standards: 60079-0 Ed. 7; 60079-11 Ed. 6; IECEx UL 13.0050U Issue: 8; CAN/CSA C22.2 No.157-92
Certifications And Approvals Patents
US Pat 6,646,444 Japan Pat 3,793,757
Certifications And Approvals Usa
UL 913, 8th Edition. Intrinsically Safe Apparatus and Associated Apparatus for use in Class I, II, and III, Division 1, Hazardous (Classified) Locations
Electrical Characteristics Current
24 to 38 mA
Electrical Characteristics Output Signal
0.045 to 2.5 V
Electrical Characteristics Power Consumption
80 mW to 200 mW (dependent upon supply voltage)
Electrical Characteristics Supply Voltage
3.2 V to 5.5 V (input voltage regulator included)
Features And Benefits Features And Benefits
The piD-TECH® family of PID sensors are the most widely used PID sensors in the industry.Integral shieldingLamp re-ignition circuit for fast, repeatable start-uplong lamp life: Typically 10,000 hoursInternal input voltage regulation for greater signal stabilityInternal filtration for protection from particulates and humidityEasily cleaned and field servicedThe eVx⢠sensor is an affordable sensor that is easy to integrate and intrinsically safe. These sensors are proven solutions that are ideal for industrial safety applications.
Operating Specifications Humidity Quenching Effect At 90 Percent
<15 %
Operating Specifications Humidity Response At 90 Percent Relativ
<1 %
Operating Specifications Non Condensing Operating Relative Humid
0 to 90 %
Operating Specifications Temperature Range
-20 to 60 ºC | -4 to 140 ºF
Physical Characteristics Dimensions
20.4 mm Dia. x 17.6 mm H (Pins 4.78 mm H)
Physical Characteristics Lamp Life
10,000 hour
Physical Characteristics Onboard Filters
Prevents sensor contamination from liquids and particles
Physical Characteristics Serviceable Parts
Lamp, detector cell, filters, cap, spacer
Physical Characteristics Warranty Period
2 years, not including consumables
Physical Characteristics Weight
<8 g
Sensor Ranges Color
Yellow
Sensor Ranges Detection Limit
1.5 ppb
Sensor Ranges Range
20 ppm
Sensor Ranges T90 Response
<4 seconds
