Pink Silicone Flange Cap - 0.146 Inch ID, 0.264 Inch OD, 0.472 Inch Flange

Name: Pink Silicone Flange Cap - 0.146 Inch ID, 0.264 Inch OD, 0.472 Inch Flange
Brand: Custom Fabricating & Supplies
SKU: SIL-e44624
Price: 49.99 USD
Availability: OutOfStock

SKU:SIL-e44624

High-temp Pink Silicone Flange Cap, ideal for masking studs and pems, conforms to irregular shapes, reusable & color-coded. Perfect for various finishing processes.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

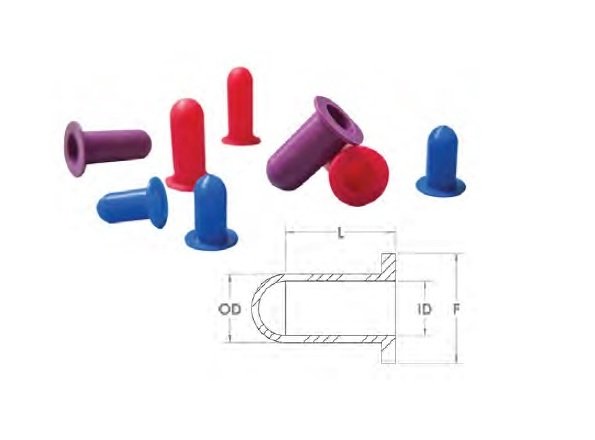

The FC146-0472 Pink Silicone Flange Cap is designed for high-temperature applications up to 600°F/315°C. With an inner diameter of 0.146 inches and a flange size of 0.472 inches, this cap is ideal for masking studs and pems, offering a secure perimeter for grounding. Its flexible material allows the cap to conform to irregular shapes, and it can be inverted for use as a plug. Color-coded for easy identification, reusable, and suitable for various finishing processes like powder coating, e-coating, wet painting, anodizing, and plating.

Product Specifications

Specifications Color

Pink

Specifications Features

Temperature Rating 600 Â°F/315 Â°C Recommended for Masking Studs and Pems with a Perimeter for Grounding Flexible Material Allows Cap to Conform to Irregular Shapes May be Inverted as a Plug Top of Cap is Rounded, not Flat Color Coded for Easy Identification and Reusable Used in Powder Coating, E-Coating, Wet Painting, Anodizing and Plating

Specifications Flange

0.472 Inch | 11.99 mm

Specifications Inner Diameter Id

0.146 Inch | 3.71 mm

Specifications Length

1.000 Inch | 25.40 mm

Specifications Outer Diameter Od

0.264 Inch | 6.71 mm

Specifications Quantitybag

500
