Pintsch Bubenzer EBN Series Drum Thruster Brakes

Name: Pintsch Bubenzer EBN Series Drum Thruster Brakes
Brand: Clutch Engineering
SKU: CLU-7ba216
Price: 1899.99 USD
Availability: OutOfStock

SKU:CLU-7ba216

High-performance drum thruster brakes compliant with DIN 15435 standard, featuring self-lubricating bushings & adjustable brake spring.

$1,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

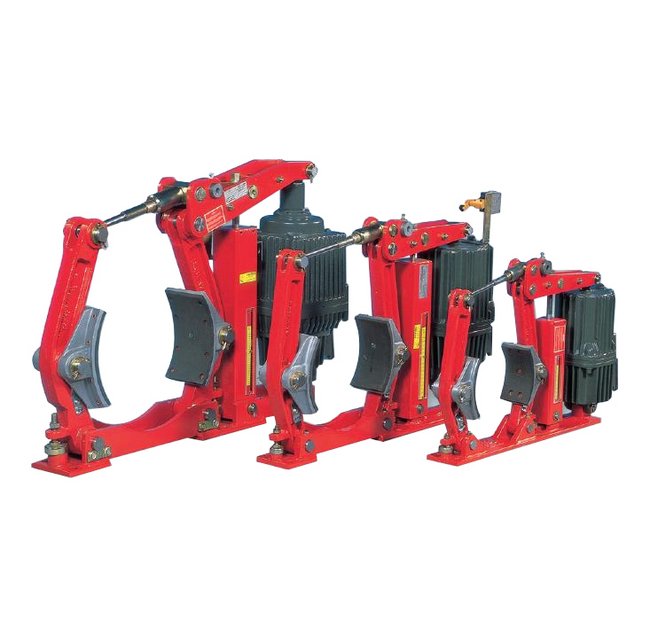

The Pintsch Bubenzer EBN Series Drum Thruster Brakes, designed to operate according to the DIN 15435 standard, are a reliable and high-performance solution for industrial applications. Featuring a robust design with self-lubricating bushings, these brakes eliminate the need for greasing, making servicing hassle-free. The stepless adjustable brake spring enclosed in a square tube, along with the directly readable torque scale, ensures precise control. With aluminum brake shoes meeting DIN 15435 standards and various optional features like automatic wear compensators and monitoring systems, these brakes offer exceptional quality and versatility.

Product Specifications

Features 0

According to DIN 15435ReliableHigh performanceRobust designTried and trustedStepless adjustable brake spring enclosed in a square tube with directly readable torque scaleSelf-lubricating bushings mean brakes are easy to service, no greasing necessaryEven brake shoe release by adjustable lever stopsUp to size 400: Levers and base plate of nodular cast ironFrom size 500: Levers and base plate welded steelDifferent actuatorsAluminum brake shoes acc. DIN 15435 Bl. 2 with non-asbestos, organic liningsShoe clamping springs which prevent brake shoes from tilting when releasedPins and main spindle of stainless steelPolished parts and screws galvanized and plated

Options 0

Automatic wear compensatorLimit switch release controlLimit switch wear controlLimit switch manual releaseManual release lever with or without stopMonitoring systems (e.g. VSR/CMB)Brake drums with hubs or couplings

Specifications Actuation

Spring Applied, Electro-Hydraulic Release

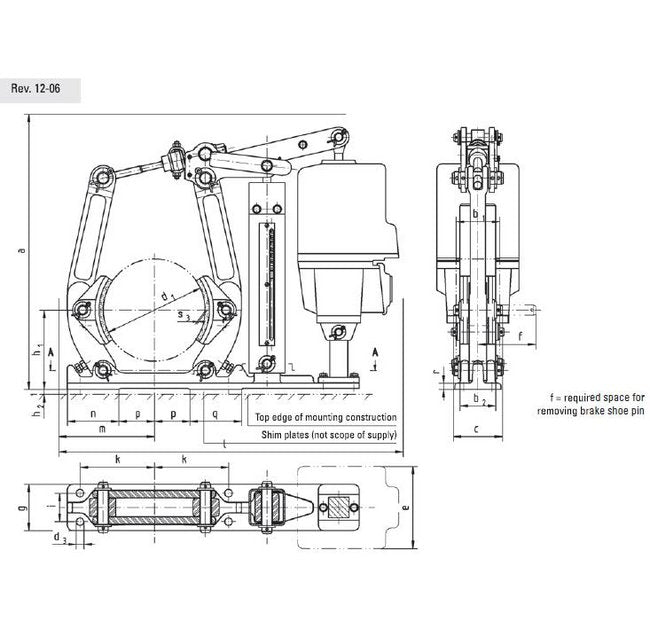

Specifications Dimension Amax

563 mm

Specifications Dimension B1

75 mm

Specifications Dimension B2

70 mm

Specifications Dimension C

96 mm

Specifications Dimension D3

14 mm

Specifications Dimension E

160 mm

Specifications Dimension F

115 mm

Specifications Dimension G

90 mm

Specifications Dimension H1

155 mm

Specifications Dimension H2

5 mm

Specifications Dimension I

55 mm

Specifications Dimension K

145 mm

Specifications Dimension Lmax

665 mm

Specifications Dimension M

185 mm

Specifications Dimension N

100 mm

Specifications Dimension P

70 mm

Specifications Dimension Q

100 mm

Specifications Dimension R

12 mm

Specifications Dimension S3

1 mm

Specifications Drum Diameter

200 mm

Specifications Manufacturer

Pintsch Bubenzer

Specifications Thruster Type

Ed 30/5

Specifications Torque Rating 04

380 Nm

Specifications Weight

22 kg
