The Pintsch Bubenzer KFB Electric Brake System is a high-performance solution designed for industrial applications requiring precise stopping power and reliability. With a dynamic torque rating of 300 Nm and a maximum speed of 6000 min-1, this brake system ensures efficient operation under demanding conditions. Manufactured by Pintsch Bubenzer, a renowned name in the industry, this system features spring applied, electric release actuation for enhanced safety and control. With standard IEC flange sizes available and compliance with industry-specific certifications, the KFB Brake System is ideal for government and institutional procurement needs.
Product Specifications
Specifications Actuation
Spring Applied, Electric Release
Specifications Angle
30 º
Specifications Dynamic Torque Rating
300 Nm
Specifications Inertia
0.0055 kg·m²
Specifications Length E
250 mm | 300 mm
Specifications Length H
144 mm
Specifications Length L
137 mm
Specifications Length L1
137 mm
Specifications Length M
175 mm
Specifications Length S
15 mm
Specifications Manufacturer
Pintsch Bubenzer
Specifications Maximum Airgap Off
0.8 mm
Specifications Maximum Speed
6000 min-1
Specifications Nominal Current 20 C
1.20 A
Specifications Nominal Power 20 C
133 W
Specifications Nominal Voltage Dc 20 C
110 V
Specifications Normal Airgap Off
0.3 mm
Specifications Rough Bore Diameter
26 mm
Specifications Standard Bore Diameters
32 mm | 38 mm | 42 mm | 45 mm

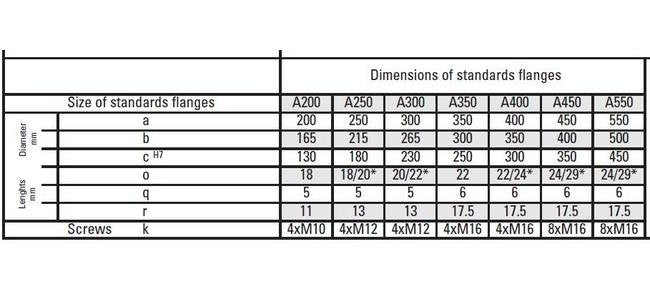

Specifications Standard Iec Flange Sizes
A250 | A300
Specifications Weight
50 kg
