The Pintsch Bubenzer KFB Electric Brakes are precision-engineered for reliable performance in demanding industrial settings. With a dynamic torque rating of 160 Nm, these brakes provide exceptional stopping power. Featuring a spring-applied, electric release actuation, they ensure quick response times for enhanced safety. Built to meet the needs of institutional buyers, these brakes come in standard lengths and bore diameters, compatible with IEC flange sizes A250 and A300. Trust Pintsch Bubenzer, a renowned manufacturer, for quality and durability.
Product Specifications
Specifications Actuation
Spring Applied, Electric Release
Specifications Angle
30 º
Specifications Dynamic Torque Rating
160 Nm
Specifications Inertia
0.0037 kg·m²
Specifications Length E
253 mm | 303 mm
Specifications Length H
144 mm
Specifications Length L
96 mm
Specifications Length L1
96 mm
Specifications Length M
141 mm
Specifications Length S
15 mm
Specifications Manufacturer
Pintsch Bubenzer
Specifications Maximum Airgap Off
1.0 mm
Specifications Maximum Speed
6000 min-1
Specifications Nominal Current 20 C
1.16 A
Specifications Nominal Power 20 C
128 W
Specifications Nominal Voltage Dc 20 C
110 V
Specifications Normal Airgap Off
0.3 mm
Specifications Rough Bore Diameter
26 mm
Specifications Standard Bore Diameters
28 mm | 32 mm | 38 mm

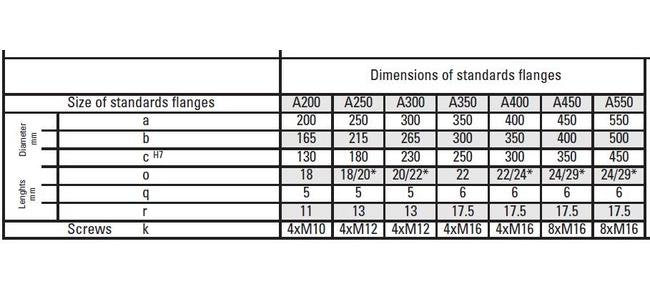

Specifications Standard Iec Flange Sizes
A250 | A300
Specifications Weight
28 kg
