Pintsch Bubenzer KFB Electric Brakes
Pintsch Bubenzer KFB Electric Brakes
SKU:CLU-da0053
High-performance Pintsch Bubenzer KFB Electric Brakes with 400 Nm torque, 110 V voltage, and spring-applied, electric release actuation.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
Pintsch Bubenzer KFB Electric Brakes
$2,599.99
Quantity: 1
Claim Your Seller Account
Pintsch Bubenzer KFB Electric Brakes
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Pintsch Bubenzer KFB Electric Brakes are precision-engineered for durability and reliable performance, with a dynamic torque rating of 400 Nm. Weighing 55 kg, these brakes feature a maximum speed of 5500 min-1 and a nominal voltage of 110 V. With spring-applied, electric release actuation, these brakes ensure safety and efficiency in industrial applications. Compliant with industry standards for quality and performance, the Pintsch Bubenzer KFB Electric Brakes guarantee smooth operation and long-lasting functionality.
Product Specifications
Specifications Actuation
Spring Applied, Electric Release
Specifications Angle
30 º
Specifications Dynamic Torque Rating
400 Nm
Specifications Inertia
0.0068 kg·m²

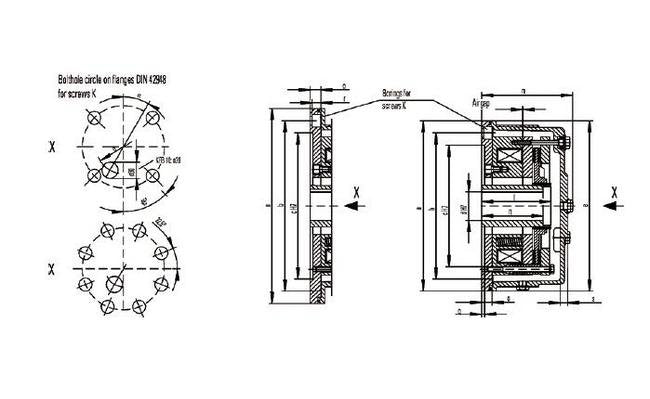

Specifications Length E
303 mm | 350 mm
Specifications Length H
194 mm
Specifications Length L
117 mm
Specifications Length L1
117 mm
Specifications Length M
175 mm
Specifications Length S
15 mm
Specifications Manufacturer
Pintsch Bubenzer
Specifications Maximum Airgap Off
1.2 mm
Specifications Maximum Speed
5500 min-1
Specifications Nominal Current 20 C
1.78 A
Specifications Nominal Power 20 C
196 W
Specifications Nominal Voltage Dc 20 C
110 V
Specifications Normal Airgap Off
0.3 mm
Specifications Rough Bore Diameter
36 mm
Specifications Standard Bore Diameters
38 mm | 42 mm | 48 mm | 55 mm

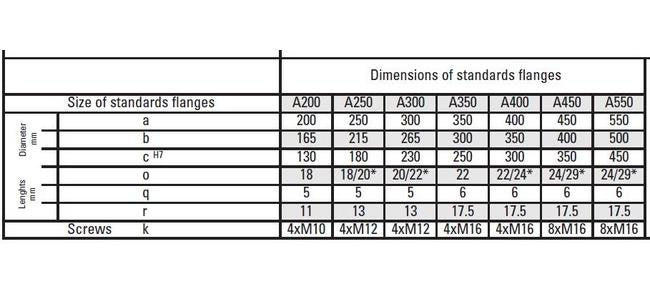

Specifications Standard Iec Flange Sizes
A300 | A350
Specifications Weight
55 kg
