Pintsch Bubenzer KFB Electric Brakes
Pintsch Bubenzer KFB Electric Brakes
SKU:CLU-e1d6e8
Enhanced braking performance: Pintsch Bubenzer KFB Electric Brakes - precise, durable, and reliable for institutional needs.
Regular price
$1,200.00
Regular price
Sale price
$1,200.00
Unit price
per
Initiate Order
Pintsch Bubenzer KFB Electric Brakes
$1,200.00
Quantity: 1
Claim Your Seller Account
Pintsch Bubenzer KFB Electric Brakes
$1,200.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience top-notch braking performance with the Pintsch Bubenzer KFB Electric Brakes. With a Dynamic Torque Rating of 100 Nm, these brakes are designed for precision and reliability. Weighing 19 kg, they offer durability without compromising efficiency. Operate at speeds up to 6000 min-1 with a Nominal Voltage of 110V. The spring-applied, electric release mechanism enhances safety and control. Engineered by Pintsch Bubenzer, these brakes meet industry-leading standards for governmental and institutional procurement.
Product Specifications
Specifications Actuation
Spring Applied, Electric Release
Specifications Angle
30 º
Specifications Dynamic Torque Rating
100 Nm
Specifications Inertia
0.0017 kg·m²

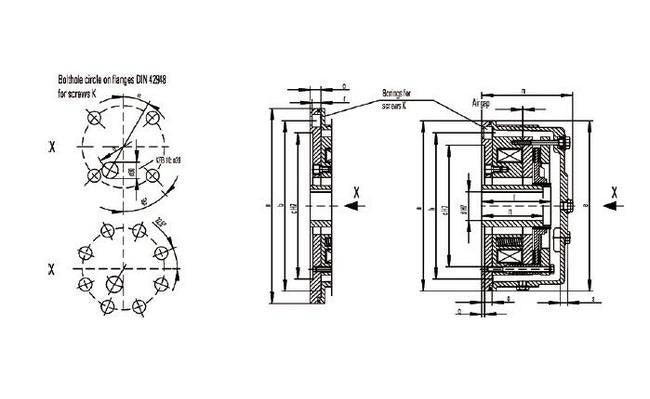

Specifications Length E
200 mm | 250 mm
Specifications Length H
106 mm
Specifications Length L
110 mm
Specifications Length L1
110 mm
Specifications Length M
154 mm
Specifications Length S
15 mm
Specifications Manufacturer
Pintsch Bubenzer
Specifications Maximum Airgap Off
1.0 mm
Specifications Maximum Speed
6000 min-1
Specifications Nominal Current 20 C
0.84 A
Specifications Nominal Power 20 C
93 W
Specifications Nominal Voltage Dc 20 C
110 V
Specifications Normal Airgap Off
0.3 mm
Specifications Rough Bore Diameter
26 mm
Specifications Standard Bore Diameters
28 mm | 32 mm | 38 mm

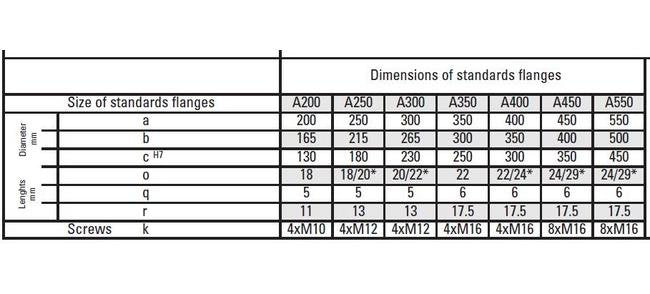

Specifications Standard Iec Flange Sizes
A200 | A250
Specifications Weight
19 kg
