Pintsch Bubenzer KFB Electric Brakes
Pintsch Bubenzer KFB Electric Brakes
SKU:CLU-8759f5
High-performance Pintsch Bubenzer KFB Electric Brakes for precise control and durability in demanding applications.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Pintsch Bubenzer KFB Electric Brakes
$2,899.99
Quantity: 1
Claim Your Seller Account
Pintsch Bubenzer KFB Electric Brakes
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Pintsch Bubenzer KFB Electric Brakes are expertly engineered for high-performance applications, with a dynamic torque rating of 1600 Nm and a maximum speed of 3600 min-1. Designed by Pintsch Bubenzer, these brakes feature an inertia of 0.0500 kg·m² and a weight of 168 kg, ensuring durability and reliability under demanding conditions. Equipped with a spring-applied, electric release actuation system, these brakes offer precise control and safety. With standard IEC flange sizes A450 and A550 options, these brakes provide versatility and compatibility, meeting the stringent requirements of institutional and government procurement standards.
Product Specifications
Specifications Actuation
Spring Applied, Electric Release
Specifications Angle
30 º
Specifications Dynamic Torque Rating
1600 Nm
Specifications Inertia
0.0500 kg·m²

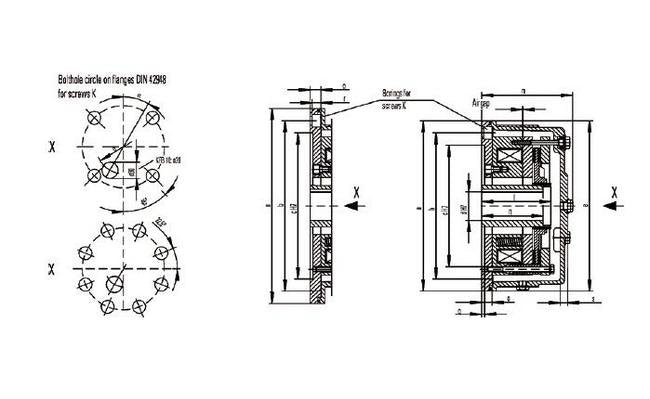

Specifications Length E
450 mm | 550 mm
Specifications Length H
314 mm
Specifications Length L
155 mm
Specifications Length L1
142 mm
Specifications Length M
218 mm
Specifications Length S
17 mm
Specifications Manufacturer
Pintsch Bubenzer
Specifications Maximum Airgap Off
1.8 mm
Specifications Maximum Speed
3600 min-1
Specifications Nominal Current 20 C
3.13 A
Specifications Nominal Power 20 C
344 W
Specifications Nominal Voltage Dc 20 C
110 V
Specifications Normal Airgap Off
0.4 mm
Specifications Rough Bore Diameter
36 mm
Specifications Standard Bore Diameters
60 mm | 65 mm | 75 mm

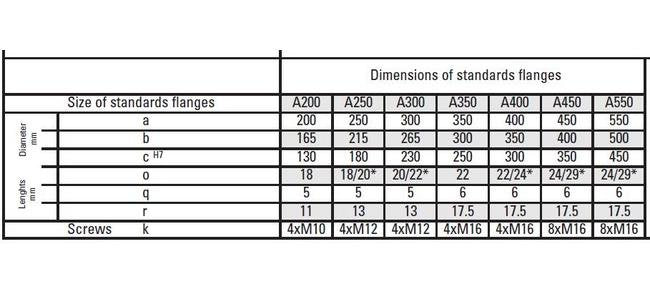

Specifications Standard Iec Flange Sizes
A450 | A550
Specifications Weight
168 kg
