Pintsch Bubenzer KFB Electric Clutch Brake
Pintsch Bubenzer KFB Electric Clutch Brake
SKU:CLU-cc354f
Compact yet powerful, the Pintsch Bubenzer KFB Electric Clutch Brake offers precision and durability for high-speed applications.
Regular price
$1,399.99
Regular price
Sale price
$1,399.99
Unit price
per
Initiate Order
Pintsch Bubenzer KFB Electric Clutch Brake
$1,399.99
Quantity: 1
Claim Your Seller Account
Pintsch Bubenzer KFB Electric Clutch Brake
$1,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Pintsch Bubenzer KFB Electric Clutch Brake offers a dynamic torque rating of 630 Nm, making it ideal for high-speed applications with its maximum speed of 4700 min-1. With an actuation system of Spring Applied, Electric Release, this brake provides precise control and safety. Its durable construction by Pintsch Bubenzer ensures reliable performance and longevity, meeting rigorous industry standards for institutional and government procurement.
Product Specifications
Specifications Actuation
Spring Applied, Electric Release
Specifications Angle
30 º
Specifications Dynamic Torque Rating
630 Nm
Specifications Inertia
0.0175 kg·m²
Specifications Length E
350 mm | 400 mm
Specifications Length H
214 mm
Specifications Length L
142 mm
Specifications Length L1
142 mm
Specifications Length M
187 mm
Specifications Length S
15 mm
Specifications Manufacturer
Pintsch Bubenzer
Specifications Maximum Airgap Off
1.3 mm
Specifications Maximum Speed
4700 min-1
Specifications Nominal Current 20 C
2.00 A
Specifications Nominal Power 20 C
220 W
Specifications Nominal Voltage Dc 20 C
110 V
Specifications Normal Airgap Off
0.4 mm
Specifications Rough Bore Diameter
36 mm
Specifications Standard Bore Diameters
48 mm | 55 mm | 60 mm

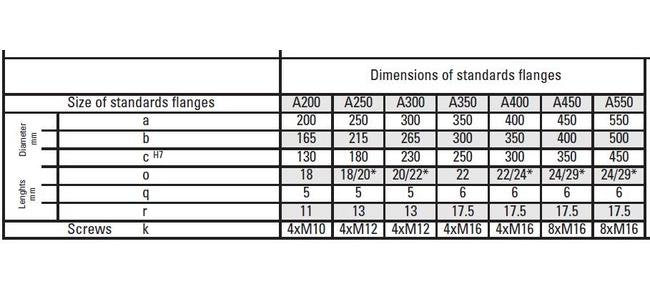

Specifications Standard Iec Flange Sizes
A350 | A400
Specifications Weight
74 kg
