Pintsch Bubenzer KFB Electric Clutch Brake System
Pintsch Bubenzer KFB Electric Clutch Brake System
SKU:CLU-360428
High-performance electric clutch brake system for industrial applications. Meets government procurement standards.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Pintsch Bubenzer KFB Electric Clutch Brake System
$2,899.99
Quantity: 1
Claim Your Seller Account
Pintsch Bubenzer KFB Electric Clutch Brake System
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Pintsch Bubenzer KFB Electric Clutch Brake System is a high-performance solution designed for demanding industrial applications. With a Dynamic Torque Rating of 250 Nm and a maximum speed of 6000 min-1, this brake system ensures precise control and reliable stopping power. Weighing 42 kg, it features Spring Applied, Electric Release actuation for enhanced safety. The KFB Brake meets Federal/DoD procurement standards, GSA requirements, and FAR compliance factors, making it an ideal choice for government and institutional buyers seeking top-quality, compliant solutions.
Product Specifications
Specifications Actuation
Spring Applied, Electric Release
Specifications Angle
30 º
Specifications Dynamic Torque Rating
250 Nm
Specifications Inertia
0.0048 kg·m²

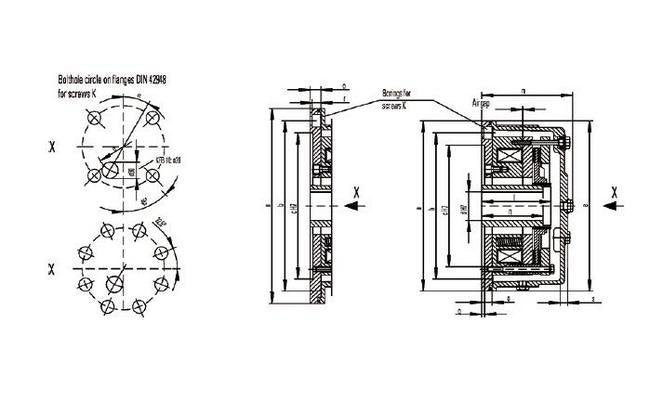

Specifications Length E
300 mm | 350 mm
Specifications Length H
194 mm
Specifications Length L
117 mm
Specifications Length L1
117 mm
Specifications Length M
165 mm
Specifications Length S
15 mm
Specifications Manufacturer
Pintsch Bubenzer
Specifications Maximum Airgap Off
1.2 mm
Specifications Maximum Speed
6000 min-1
Specifications Nominal Current 20 C
1.44 A
Specifications Nominal Power 20 C
158 W
Specifications Nominal Voltage Dc 20 C
110 V
Specifications Normal Airgap Off
0.3 mm
Specifications Rough Bore Diameter
36 mm
Specifications Standard Bore Diameters
38 mm | 42 mm | 48 mm | 55 mm

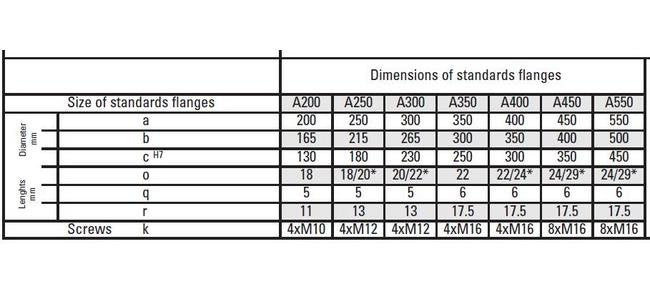

Specifications Standard Iec Flange Sizes
A300 | A350
Specifications Weight
42 kg
