Pintsch Bubenzer KFB Electric Spring-Applied Brakes
Pintsch Bubenzer KFB Electric Spring-Applied Brakes
SKU:CLU-f84ad6
High-performance Pintsch Bubenzer KFB Electric Spring- Applied Brakes with dynamic torque rating of 1000 Nm, ideal for industrial applications.
Regular price
$2,850.00
Regular price
Sale price
$2,850.00
Unit price
per
Initiate Order
Pintsch Bubenzer KFB Electric Spring-Applied Brakes
$2,850.00
Quantity: 1
Claim Your Seller Account
Pintsch Bubenzer KFB Electric Spring-Applied Brakes
$2,850.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Pintsch Bubenzer KFB Electric Spring-Applied Brakes offer a robust solution for applications requiring a dynamic torque rating of 1000 Nm. With a durable design by Pintsch Bubenzer, these brakes feature precise control with a nominal voltage of 110V and a maximum speed of 4000 min-1. Weighing 106 kg, these brakes are designed for reliability and high-performance, making them ideal for industrial applications where safety and efficiency are paramount. The spring-applied, electric release mechanism ensures quick and efficient braking, meeting the stringent standards of government and institutional procurement.
Product Specifications
Specifications Actuation
Spring Applied, Electric Release
Specifications Angle
30 º
Specifications Dynamic Torque Rating
1000 Nm
Specifications Inertia
0.0360 kg·m²
Specifications Length E
400 mm | 450 mm
Specifications Length H
264 mm
Specifications Length L
148 mm
Specifications Length L1
142 mm
Specifications Length M
196 mm
Specifications Length S
15 mm
Specifications Manufacturer
Pintsch Bubenzer
Specifications Maximum Airgap Off
1.6 mm
Specifications Maximum Speed
4000 min-1
Specifications Nominal Current 20 C
2.79 A
Specifications Nominal Power 20 C
307 W
Specifications Nominal Voltage Dc 20 C
110 V
Specifications Normal Airgap Off
0.4 mm
Specifications Rough Bore Diameter
36 mm
Specifications Standard Bore Diameters
60 mm | 65 mm | 75 mm

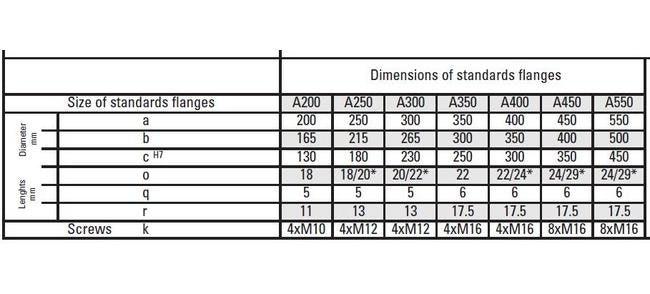

Specifications Standard Iec Flange Sizes
A400 | A450
Specifications Weight
106 kg
