Pintsch Bubenzer SB 23 Disc Brakes

Name: Pintsch Bubenzer SB 23 Disc Brakes
Brand: Clutch Engineering
SKU: CLU-84f74c
Price: 1499.99 USD
Availability: OutOfStock

SKU:CLU-84f74c

Enhanced SB 23 Disc Brakes with patented self-centering levers, high friction sintered linings, and durable stainless steel components.

$1,499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Pintsch Bubenzer SB 23 Disc Brakes are engineered with patented self-centering brake levers for precise performance. Featuring automatic wear compensation and sintered linings, these disc brakes ensure high friction speeds for optimal stopping power. Stainless steel pins, maintenance-free bushings, and an adjustable enclosed brake spring enhance durability and reliability. With a symmetric design and special anti-corrosion protection, these brakes offer exceptional quality and longevity for diverse applications.

Product Specifications

Features 0

Patented self-centering of brake leversAutomatic wear compensatorSintered linings for high friction speedsStainless steel pins and spindlesMaintenance free bushings in all hinge pointsAdjustable, enclosed brake spring with torque scale and wear bushing in the spring tubeSymmetric designW-execution (special anti-corrosion protection)

Note 0

If ordered with manual release lever.Alterations reserved without notice.

Options 0

Limit switch release controlLimit switch wear controlLimit switch manual releaseManual release lever with or without stopMonitoring systems (e.g. VSR/CMB)Brake discs with hubs or couplings

Specifications Actuation

Spring Applied, Electric Release

Specifications Brake Torque Mbr For 12500 N

1850 Nm

Specifications Brake Torque Mbr For 16000 N

2370 Nm

Specifications Brake Torque Mbr For 8500 N

1255 Nm

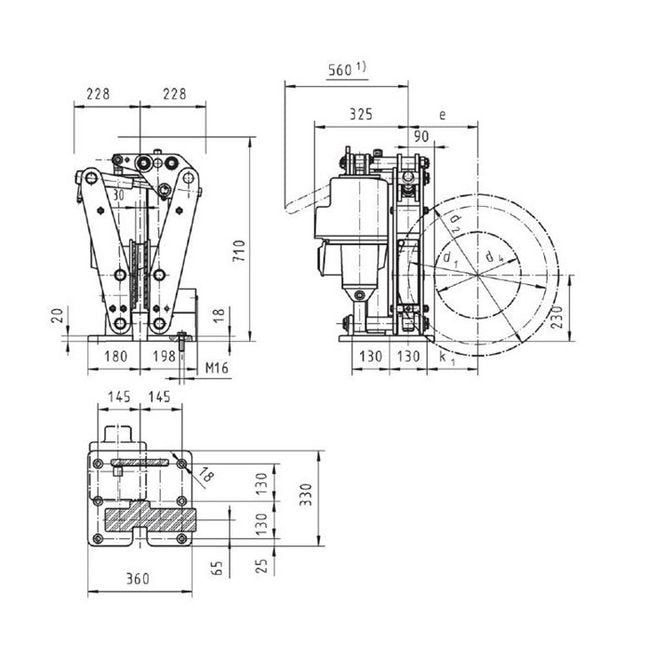

Specifications Dimension D4

250 mm

Specifications Dimension E

185 mm

Specifications Dimension K1

120 mm

Specifications Disc D2

450 mm

Specifications Friction D1

370 mm

Specifications Friction Factor

0.4

Specifications Manufacturer

Pintsch Bubenzer

Specifications Thruster Type

Ed 50/6 for 8500 N Contract Force | Ed 80/6 for 12500 N Contract Force | Ed 80/7bb for 16000 N Contract Force

Specifications Weight Without Thruster

97 kg
