Pintsch Bubenzer SB 23 Self-Centering Disc Brakes
Pintsch Bubenzer SB 23 Self-Centering Disc Brakes
SKU:CLU-7a6a61
Enhance braking performance with patented self-centering SB 23 Disc Brakes by Pintsch Bubenzer. Meets Federal/DoD procurement standards.
Regular price
$2,100.00
Regular price
Sale price
$2,100.00
Unit price
per
Initiate Order
Pintsch Bubenzer SB 23 Self-Centering Disc Brakes
$2,100.00
Quantity: 1
Claim Your Seller Account
Pintsch Bubenzer SB 23 Self-Centering Disc Brakes
$2,100.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance braking performance with the Pintsch Bubenzer SB 23 Disc Brakes. Featuring patented self-centering brake levers, automatic wear compensator, sintered linings for high friction speeds, and stainless steel components for durability. Maintenance-free bushings and enclosed adjustable brake spring ensure reliable operation. With symmetric design and special anti-corrosion protection, these disc brakes deliver optimal safety and efficiency, meeting Federal/DoD procurement standards.
Product Specifications
Features 0
Patented self-centering of brake leversAutomatic wear compensatorSintered linings for high friction speedsStainless steel pins and spindlesMaintenance free bushings in all hinge pointsAdjustable, enclosed brake spring with torque scale and wear bushing in the spring tubeSymmetric designW-execution (special anti-corrosion protection)
Note 0
If ordered with manual release lever.Alterations reserved without notice.
Options 0
Limit switch release controlLimit switch wear controlLimit switch manual releaseManual release lever with or without stopMonitoring systems (e.g. VSR/CMB)Brake discs with hubs or couplings
Specifications Actuation
Spring Applied, Electric Release
Specifications Brake Torque Mbr For 12500 N
2750 Nm
Specifications Brake Torque Mbr For 16000 N
3520 Nm
Specifications Brake Torque Mbr For 8500 N
1870 Nm

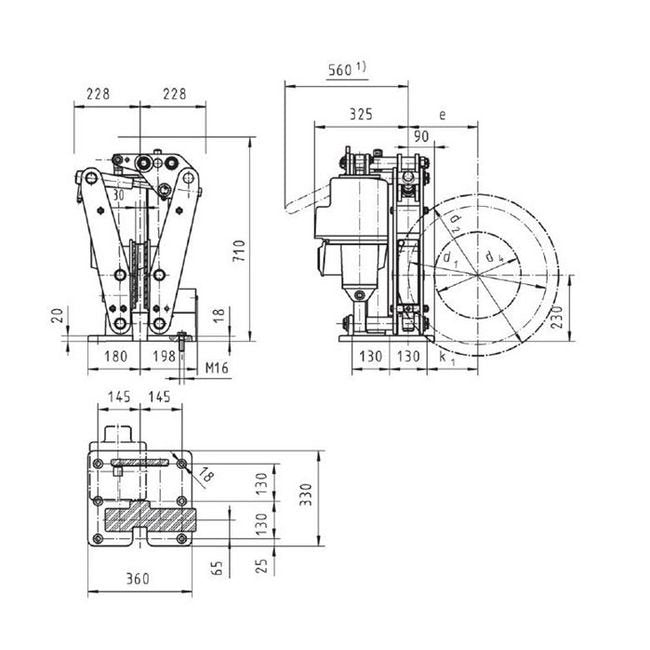

Specifications Dimension D4
430 mm
Specifications Dimension E
275 mm
Specifications Dimension K1
210 mm
Specifications Disc D2
630 mm
Specifications Friction D1
550 mm
Specifications Friction Factor
0.4
Specifications Manufacturer
Pintsch Bubenzer
Specifications Thruster Type
Ed 50/6 for 8500 N Contract Force | Ed 80/6 for 12500 N Contract Force | Ed 80/7bb for 16000 N Contract Force
Specifications Weight Without Thruster
97 kg
