Pintsch Bubenzer SB 28 Disc Brakes

Name: Pintsch Bubenzer SB 28 Disc Brakes
Brand: Clutch Engineering
SKU: CLU-93da57
Price: 6699.99 USD
Availability: OutOfStock

SKU:CLU-93da57

Enhance braking performance with Pintsch Bubenzer SB 28 Disc Brakes, featuring patented self-centering levers, sintered linings, and durable stainless steel components.

$6,699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Pintsch Bubenzer SB 28 Disc Brakes offer unparalleled braking performance with features like patented self-centering brake levers and sintered linings for high friction speeds. Designed with stainless steel pins and spindles, maintenance-free bushings, and adjustable enclosed brake springs, these disc brakes ensure reliability and durability. With a W-execution design providing special anti-corrosion protection, these brakes excel in demanding environments. Choose from various options including limit switch controls, manual release levers, and monitoring systems for enhanced safety and functionality. Manufactured by Pintsch Bubenzer, these brakes guarantee top-quality performance and efficiency.

Product Specifications

Features 0

Patented self-centering of brake leversAutomatic wear compensatorSintered linings for high friction speedsStainless steel pins and spindlesMaintenance free bushings in all hinge pointsAdjustable, enclosed brake spring with torque scale and wear bushing in the spring tubeSymmetric designW-execution (special anti-corrosion protection)

Note 0

If ordered with manual release lever.Alterations reserved without notice.

Options 0

Limit switch release controlLimit switch wear controlLimit switch manual releaseManual release lever with or without stopMonitoring systems (e.g. VSR/CMB)Brake discs with hubs or couplings

Specifications Actuation

Spring Applied, Electric Release

Specifications Brake Torque Mbr For 46000 N

14700 Nm

Specifications Brake Torque Mbr For 62500 N

20000 Nm

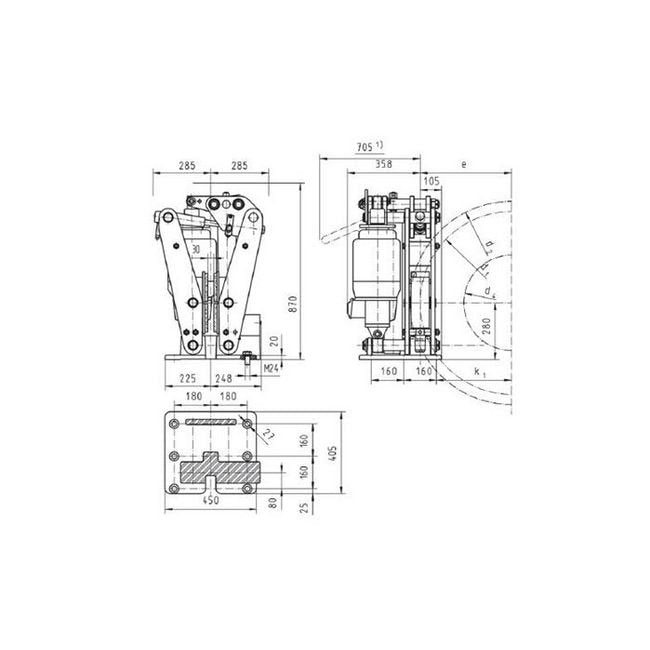

Specifications Dimension D4

650 mm

Specifications Dimension E

400 mm

Specifications Dimension K1

320 mm

Specifications Disc D2

900 mm

Specifications Friction D1

800 mm

Specifications Friction Factor

0.4

Specifications Manufacturer

Pintsch Bubenzer

Specifications Thruster Type

Ed 121/6 for 19500 N Contract Force | Ed 201/6 for 31500 N Contract Force | Ed 301/10bb for 62500 N Contract Force | Ed 301/6 for 46000 N Contract Force

Specifications Weight Without Thruster

220 kg
