Pintsch Bubenzer SB 28 Disc Brakes

Name: Pintsch Bubenzer SB 28 Disc Brakes
Brand: Clutch Engineering
SKU: CLU-b2330f
Price: 2399.99 USD
Availability: OutOfStock

SKU:CLU-b2330f

Discover the durable and high-performance Pintsch Bubenzer SB 28 Disc Brakes for reliable stopping power with patented features and anti-corrosion protection.

$2,399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Pintsch Bubenzer SB 28 Disc Brakes feature patented self-centering brake levers and automatic wear compensation for optimal performance. With sintered linings, stainless steel pins, and maintenance-free bushings, these brakes offer high friction speeds and superior durability. The adjustable brake spring and special anti-corrosion protection ensure reliable operation. Suitable for various applications, these brakes offer precise control and exceptional safety, meeting the stringent standards of government and institutional procurement.

Product Specifications

Features 0

Patented self-centering of brake leversAutomatic wear compensatorSintered linings for high friction speedsStainless steel pins and spindlesMaintenance free bushings in all hinge pointsAdjustable, enclosed brake spring with torque scale and wear bushing in the spring tubeSymmetric designW-execution (special anti-corrosion protection)

Note 0

If ordered with manual release lever.Alterations reserved without notice.

Options 0

Limit switch release controlLimit switch wear controlLimit switch manual releaseManual release lever with or without stopMonitoring systems (e.g. VSR/CMB)Brake discs with hubs or couplings

Specifications Actuation

Spring Applied, Electric Release

Specifications Brake Torque Mbr For 19500 N

4100 Nm

Specifications Brake Torque Mbr For 31500 N

6600 Nm

Specifications Brake Torque Mbr For 46000 N

9700 Nm

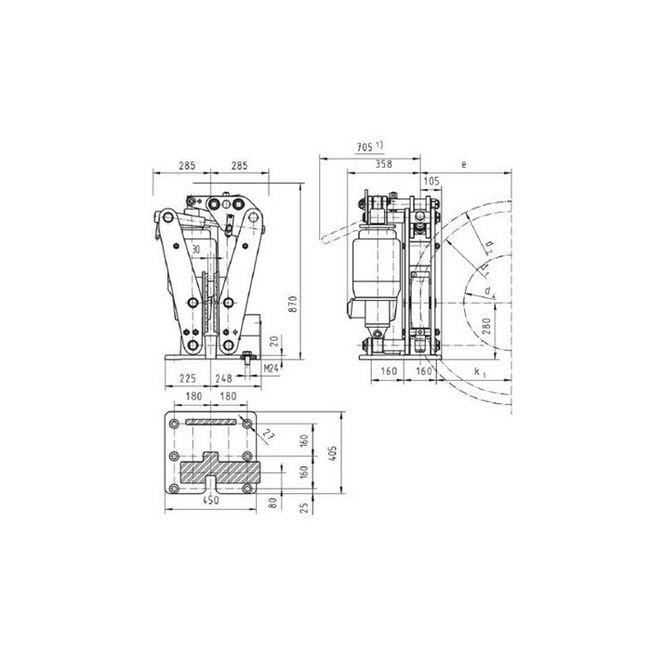

Specifications Dimension D4

380 mm

Specifications Dimension E

265 mm

Specifications Dimension K1

185 mm

Specifications Disc D2

630 mm

Specifications Friction D1

530 mm

Specifications Friction Factor

0.4

Specifications Manufacturer

Pintsch Bubenzer

Specifications Thruster Type

Ed 121/6 for 19500 N Contract Force | Ed 201/6 for 31500 N Contract Force | Ed 301/10bb for 62500 N Contract Force | Ed 301/6 for 46000 N Contract Force

Specifications Weight Without Thruster

220 kg
