Pintsch Bubenzer SB 28 Disc Brakes

Name: Pintsch Bubenzer SB 28 Disc Brakes
Brand: Clutch Engineering
SKU: CLU-c929f2
Price: 2899.99 USD
Availability: OutOfStock

SKU:CLU-c929f2

Experience precision braking with Pintsch Bubenzer SB 28 Disc Brakes. Patented design for high-performance braking.

$2,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Pintsch Bubenzer SB 28 Disc Brakes feature patented self-centering brake levers, automatic wear compensation, and sintered linings for high friction speeds. With stainless steel pins, maintenance-free bushings, and an adjustable enclosed brake spring, these brakes offer optimal performance and durability. Designed with a special anti-corrosion protection, these brakes ensure reliability in various environments. Available in multiple thruster types for different contract forces, these disc brakes provide precise braking torque and friction factors, meeting the stringent standards of industrial and government procurement.

Product Specifications

Features 0

Patented self-centering of brake leversAutomatic wear compensatorSintered linings for high friction speedsStainless steel pins and spindlesMaintenance free bushings in all hinge pointsAdjustable, enclosed brake spring with torque scale and wear bushing in the spring tubeSymmetric designW-execution (special anti-corrosion protection)

Note 0

If ordered with manual release lever.Alterations reserved without notice.

Options 0

Limit switch release controlLimit switch wear controlLimit switch manual releaseManual release lever with or without stopMonitoring systems (e.g. VSR/CMB)Brake discs with hubs or couplings

Specifications Actuation

Spring Applied, Electric Release

Specifications Brake Torque Mbr For 19500 N

2700 Nm

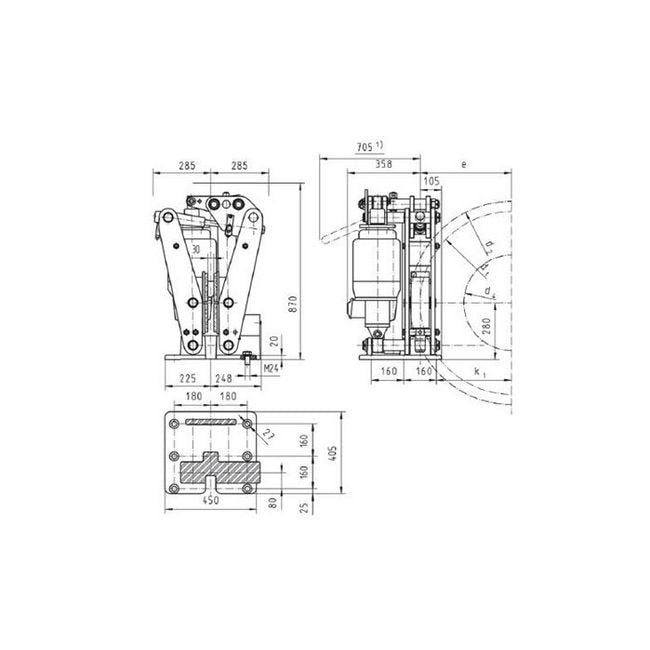

Specifications Dimension D4

200 mm

Specifications Dimension E

175 mm

Specifications Dimension K1

95 mm

Specifications Disc D2

450 mm

Specifications Friction D1

350 mm

Specifications Friction Factor

0.4

Specifications Manufacturer

Pintsch Bubenzer

Specifications Thruster Type

Ed 121/6 for 19500 N Contract Force | Ed 201/6 for 31500 N Contract Force | Ed 301/10bb for 62500 N Contract Force | Ed 301/6 for 46000 N Contract Force

Specifications Weight Without Thruster

220 kg
