Pintsch Bubenzer SB 28 Disc Brakes with Thruster

Name: Pintsch Bubenzer SB 28 Disc Brakes with Thruster
Brand: Clutch Engineering
SKU: CLU-a4d8e2
Price: 2899.99 USD
Availability: OutOfStock

SKU:CLU-a4d8e2

Enhance braking efficiency with Pintsch Bubenzer SB 28 Disc Brakes with Thruster. Patented design for high-speed friction, maintenance-free, and corrosion-resistant.

$2,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your braking system with the advanced Pintsch Bubenzer SB 28 Disc Brakes featuring patented self-centering brake levers, automatic wear compensator, sintered linings for high speeds, maintenance-free bushings, stainless steel pins, and more. With adjustable brake spring, symmetric design, and special anti-corrosion protection, these disc brakes offer superior performance and durability. Ideal for industrial applications requiring precise braking control.

Product Specifications

Features 0

Patented self-centering of brake leversAutomatic wear compensatorSintered linings for high friction speedsStainless steel pins and spindlesMaintenance free bushings in all hinge pointsAdjustable, enclosed brake spring with torque scale and wear bushing in the spring tubeSymmetric designW-execution (special anti-corrosion protection)

Note 0

If ordered with manual release lever.Alterations reserved without notice.

Options 0

Limit switch release controlLimit switch wear controlLimit switch manual releaseManual release lever with or without stopMonitoring systems (e.g. VSR/CMB)Brake discs with hubs or couplings

Specifications Actuation

Spring Applied, Electric Release

Specifications Brake Torque Mbr For 19500 N

3550 Nm

Specifications Brake Torque Mbr For 31500 N

5750 Nm

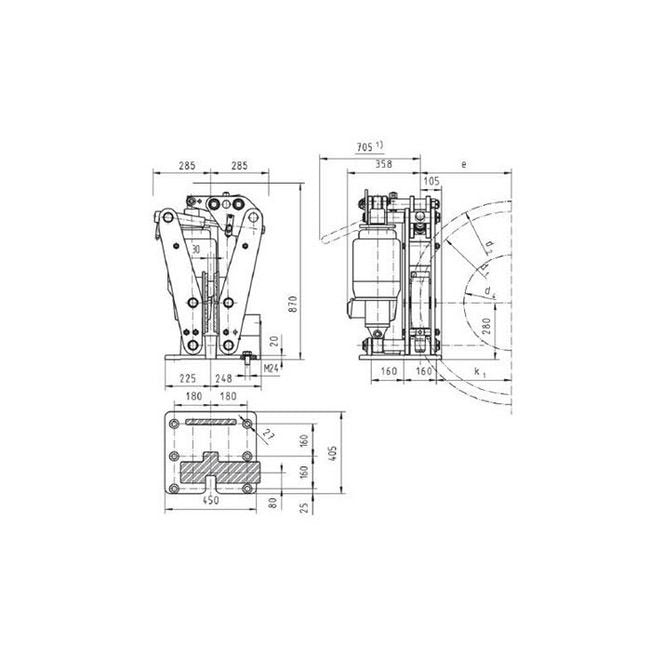

Specifications Dimension D4

310 mm

Specifications Dimension E

230 mm

Specifications Dimension K1

150 mm

Specifications Disc D2

560 mm

Specifications Friction D1

460 mm

Specifications Friction Factor

0.4

Specifications Manufacturer

Pintsch Bubenzer

Specifications Thruster Type

Ed 121/6 for 19500 N Contract Force | Ed 201/6 for 31500 N Contract Force | Ed 301/10bb for 62500 N Contract Force | Ed 301/6 for 46000 N Contract Force

Specifications Weight Without Thruster

220 kg
