Pintsch Bubenzer SB 38 Disc Brakes
Pintsch Bubenzer SB 38 Disc Brakes
SKU:CLU-4f05d4
Experience precise braking control with Pintsch Bubenzer SB 38 Disc Brakes, designed for durability and high friction speeds. Compliant with government standards.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Pintsch Bubenzer SB 38 Disc Brakes
$599.99
Quantity: 1
Claim Your Seller Account
Pintsch Bubenzer SB 38 Disc Brakes
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Pintsch Bubenzer SB 38 Disc Brakes feature patented self-centering brake levers and automatic wear compensator for precise braking control. With sintered linings, stainless steel components, and maintenance-free bushings, these brakes offer high friction speeds and durability. The adjustable enclosed brake spring with torque scale ensures reliable performance. Compliant with government procurement standards, these brakes are ideal for institutional use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0
Patented self-centering of brake leversAutomatic wear compensatorSintered linings for high friction speedsStainless steel pins and spindlesMaintenance free bushings in all hinge pointsAdjustable, enclosed brake spring with torque scale and wear bushing in the spring tubeSymmetric designW-execution (special anti-corrosion protection)
Note 0
If ordered with manual release lever.Alterations reserved without notice.
Options 0
Limit switch release controlLimit switch wear controlLimit switch manual releaseManual release lever with or without stopMonitoring systems (e.g. VSR/CMB)Brake discs with hubs or couplings
Specifications Actuation
Spring Applied, Electric Release
Specifications Brake Torque Mbr For 91000 N
28000 Nm

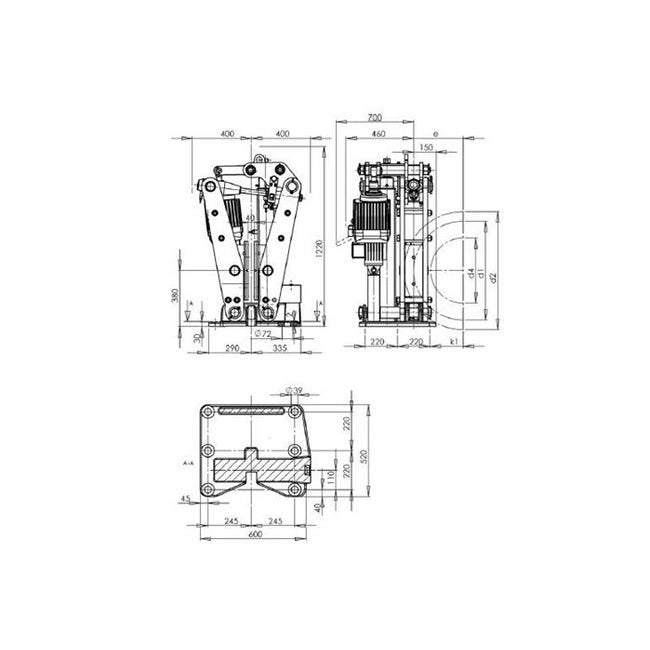

Specifications Dimension D4
540 mm
Specifications Dimension E
385 mm
Specifications Dimension K1
275 mm
Specifications Disc D2
900 mm
Specifications Friction D1
770 mm
Specifications Friction Factor
0.4
Specifications Manufacturer
Pintsch Bubenzer
Specifications Thruster Type
ED 501/8 for 91000 N Contract Force
Specifications Weight Without Thruster
510 kg
