Pintsch Bubenzer SB 38 Disc Brakes

Name: Pintsch Bubenzer SB 38 Disc Brakes
Brand: Clutch Engineering
SKU: CLU-5eb13c
Price: 1899.99 USD
Availability: OutOfStock

SKU:CLU-5eb13c

Enhance braking precision and efficiency with Pintsch Bubenzer SB 38 Disc Brakes featuring patented self-centering levers and high friction sintered linings.

$1,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Pintsch Bubenzer SB 38 Disc Brakes offer exceptional performance and reliability for a wide range of applications. With patented self-centering brake levers and automatic wear compensator, these disc brakes ensure precise and consistent braking operations. The sintered linings provide high friction speeds, while stainless steel pins and spindles guarantee durability and longevity. Maintenance-free bushings and an adjustable enclosed brake spring enhance ease of maintenance and operation. The symmetric design with W-execution anti-corrosion protection further adds to the longevity and efficiency of these disc brakes.

Product Specifications

Features 0

Patented self-centering of brake leversAutomatic wear compensatorSintered linings for high friction speedsStainless steel pins and spindlesMaintenance free bushings in all hinge pointsAdjustable, enclosed brake spring with torque scale and wear bushing in the spring tubeSymmetric designW-execution (special anti-corrosion protection)

Note 0

If ordered with manual release lever.Alterations reserved without notice.

Options 0

Limit switch release controlLimit switch wear controlLimit switch manual releaseManual release lever with or without stopMonitoring systems (e.g. VSR/CMB)Brake discs with hubs or couplings

Specifications Actuation

Spring Applied, Electric Release

Specifications Brake Torque Mbr For 91000 N

31500 Nm

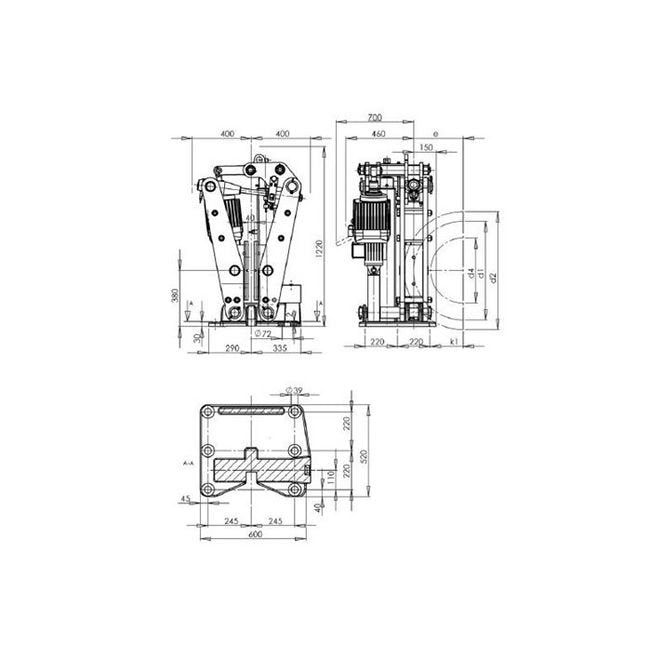

Specifications Dimension D4

640 mm

Specifications Dimension E

435 mm

Specifications Dimension K1

325 mm

Specifications Disc D2

1000 mm

Specifications Friction D1

870 mm

Specifications Friction Factor

0.4

Specifications Manufacturer

Pintsch Bubenzer

Specifications Thruster Type

ED 501/8 for 91000 N Contract Force

Specifications Weight Without Thruster

510 kg
