Pintsch Bubenzer SB 38 Disc Brakes

Name: Pintsch Bubenzer SB 38 Disc Brakes
Brand: Clutch Engineering
SKU: CLU-88479e
Price: 2499.99 USD
Availability: OutOfStock

SKU:CLU-88479e

Experience patented self-centering brake levers, automatic wear compensation & high-speed friction linings with Pintsch Bubenzer SB 38 Disc Brakes.

$2,499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Pintsch Bubenzer SB 38 Disc Brakes offer patented self-centering brake levers, automatic wear compensation, and sintered linings for high friction speeds. With maintenance-free bushings, stainless steel pins, and an adjustable enclosed brake spring, these disc brakes provide reliable performance. The symmetric design and W-execution with anti-corrosion protection ensure durability and efficiency. Suitable for various applications requiring precise braking control and exceptional reliability.

Product Specifications

Features 0

Patented self-centering of brake leversAutomatic wear compensatorSintered linings for high friction speedsStainless steel pins and spindlesMaintenance free bushings in all hinge pointsAdjustable, enclosed brake spring with torque scale and wear bushing in the spring tubeSymmetric designW-execution (special anti-corrosion protection)

Note 0

If ordered with manual release lever.Alterations reserved without notice.

Options 0

Limit switch release controlLimit switch wear controlLimit switch manual releaseManual release lever with or without stopMonitoring systems (e.g. VSR/CMB)Brake discs with hubs or couplings

Specifications Actuation

Spring Applied, Electric Release

Specifications Brake Torque Mbr For 91000 N

21000 Nm

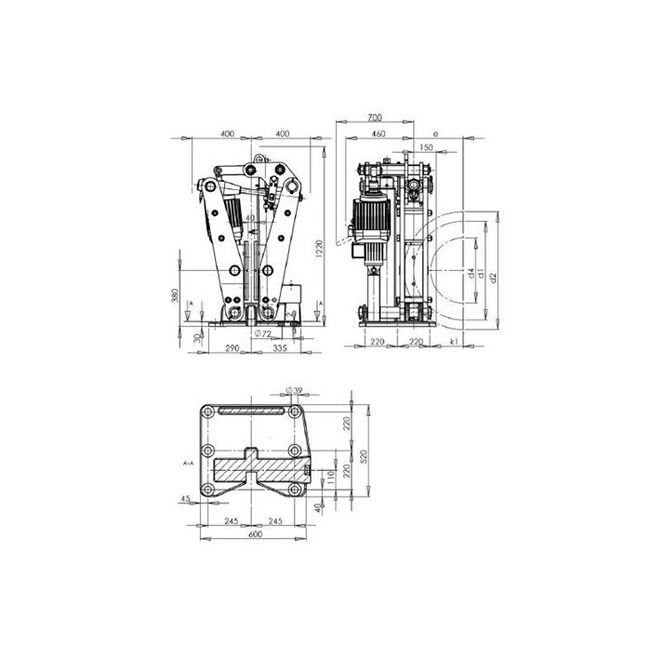

Specifications Dimension D4

350 mm

Specifications Dimension E

290 mm

Specifications Dimension K1

180 mm

Specifications Disc D2

710 mm

Specifications Friction D1

580 mm

Specifications Friction Factor

0.4

Specifications Manufacturer

Pintsch Bubenzer

Specifications Thruster Type

ED 501/8 for 91000 N Contract Force

Specifications Weight Without Thruster

510 kg
