Pintsch Bubenzer SB 38 Disc Brakes

Name: Pintsch Bubenzer SB 38 Disc Brakes
Brand: Clutch Engineering
SKU: CLU-0777ac
Price: 2899.99 USD
Availability: OutOfStock

SKU:CLU-0777ac

Experience precision braking with Pintsch Bubenzer SB 38 Disc Brakes. Patented self-centering levers, sintered linings, and adjustable enclosed springs ensure high performance.

$2,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Pintsch Bubenzer SB 38 Disc Brakes are engineered for precision, featuring patented self-centering brake levers and automatic wear compensation. Designed for high friction speeds, these disc brakes utilize sintered linings and stainless steel pins for durability. With maintenance-free bushings and an adjustable enclosed brake spring, these brakes ensure reliable performance. The W-execution design provides special anti-corrosion protection, making them ideal for demanding industrial applications.

Product Specifications

Features 0

Patented self-centering of brake leversAutomatic wear compensatorSintered linings for high friction speedsStainless steel pins and spindlesMaintenance free bushings in all hinge pointsAdjustable, enclosed brake spring with torque scale and wear bushing in the spring tubeSymmetric designW-execution (special anti-corrosion protection)

Note 0

If ordered with manual release lever.Alterations reserved without notice.

Options 0

Limit switch release controlLimit switch wear controlLimit switch manual releaseManual release lever with or without stopMonitoring systems (e.g. VSR/CMB)Brake discs with hubs or couplings

Specifications Actuation

Spring Applied, Electric Release

Specifications Brake Torque Mbr For 91000 N

40500 Nm

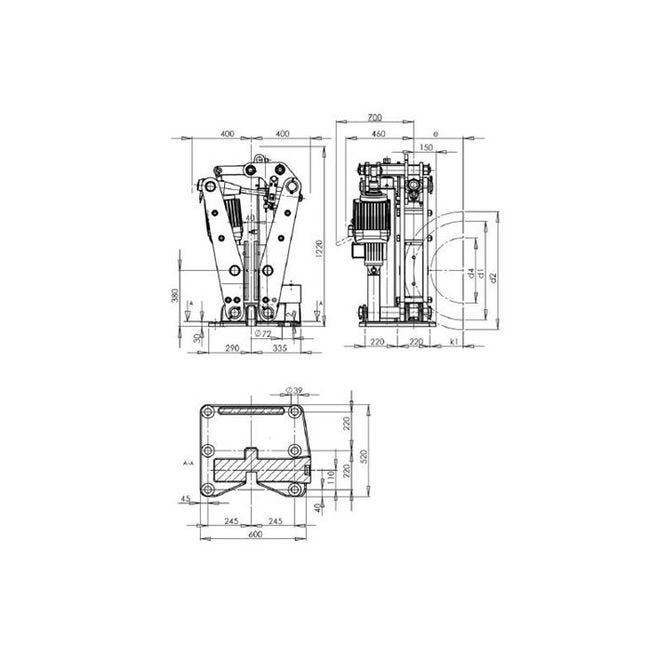

Specifications Dimension D4

890 mm

Specifications Dimension E

560 mm

Specifications Dimension K1

450 mm

Specifications Disc D2

1250 mm

Specifications Friction D1

1120 mm

Specifications Friction Factor

0.4

Specifications Manufacturer

Pintsch Bubenzer

Specifications Thruster Type

ED 501/8 for 91000 N Contract Force

Specifications Weight Without Thruster

510 kg

Pintsch Bubenzer SB 38 Disc Brakes
