Pintsch Bubenzer SFB Electric Brake - High Capacity & IP67 Rated
Pintsch Bubenzer SFB Electric Brake - High Capacity & IP67 Rated
SKU:CLU-93819d
High-capacity Pintsch Bubenzer SFB Electric Brake with IP67 protection, dynamic torque up to 160 Nm, and adjustable air gap for precision braking.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Pintsch Bubenzer SFB Electric Brake - High Capacity & IP67 Rated
$2,899.99
Quantity: 1
Claim Your Seller Account
Pintsch Bubenzer SFB Electric Brake - High Capacity & IP67 Rated
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Pintsch Bubenzer SFB Electric Brake is a reliable safety brake designed for high work capacity and durability in demanding environments. With a dynamic torque rating ranging from 100 Nm to 160 Nm, this brake offers exceptional performance. It features a spring-applied mechanism with electric release, ensuring quick and efficient braking. The IP67 protection class and high abrasion resistance make it suitable for rugged industrial applications. Additionally, its adjustable air gap, multiple bore diameter options, and compliance with DIN standards guarantee versatility and precision.
Product Specifications
Note 0

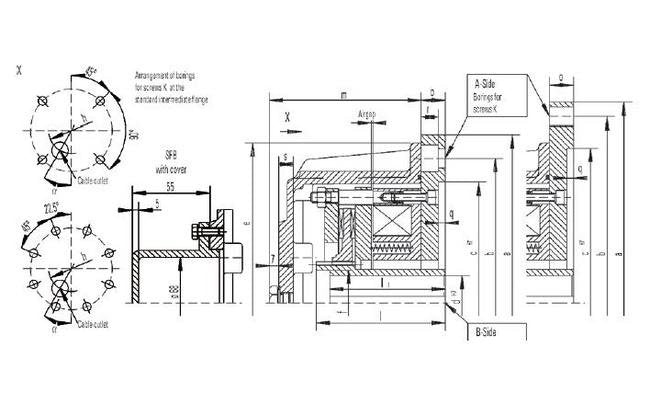

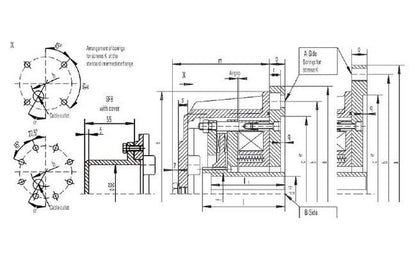

Keyways for keys acc. to DIN6885 BI.1, width accuracy P9. Protection IP67Alterations reserved without notice
Specifications Actuation
Spring Applied, Electric Release
Specifications Angle
30 º
Specifications Diameter B Side D H7 Maximal
55 mm
Specifications Dynamic Torque Rating
100 Nm | 130 Nm | 160 Nm
Specifications Inertia
0.0048 kg·m²
Specifications Length E
280 mm
Specifications Length H
202 mm
Specifications Length L
117 mm
Specifications Length L1
117 mm
Specifications Length M
137 mm
Specifications Length S
11 mm
Specifications Manufacturer
Pintsch Bubenzer
Specifications Maximum Airgap Brake Off
1.2 mm
Specifications Maximum Speed
6000 min-1
Specifications Minimum Airgap Brake Off
0.3 mm
Specifications Nominal Current 20 C
1.44 A
Specifications Nominal Power 20 C
158 W
Specifications Nominal Voltage Dc 20 C
110 V
Specifications Rough Bore Diameter
36 mm
Specifications Standard Bore Diameters
38 mm | 42 mm | 48 mm | 55 mm

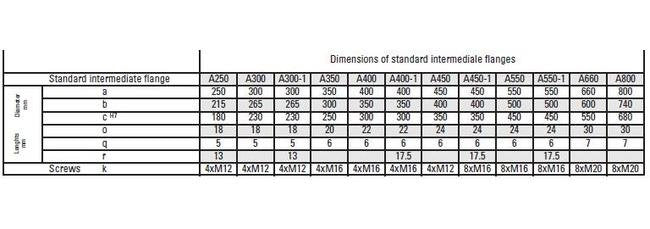

Specifications Suitable Standards Intermediate Flanges
A300-1 | A350 | A400 | A450
Specifications Weight
42 kg
