The Pintsch Bubenzer SFB Electric Brake System is a cutting-edge solution for safety braking in industrial applications. With a high dynamic torque rating of 260-400 Nm and a durable construction, this brake system ensures reliable performance in demanding environments. It features a spring-applied design with electric release for enhanced control and safety. Additionally, it meets stringent industry standards for protection, wear resistance, and operational efficiency.
Product Specifications
Note 0
Keyways for keys acc. to DIN6885 BI.1, width accuracy P9. Protection IP67Alterations reserved without notice
Specifications Actuation
Spring Applied, Electric Release
Specifications Angle
30 º
Specifications Diameter B Side D H7 Maximal
60 mm
Specifications Dynamic Torque Rating
260 Nm | 330 Nm | 400 Nm
Specifications Inertia
0.0175 kg·m²

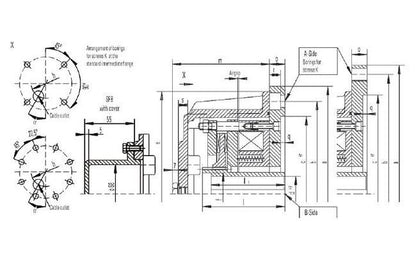

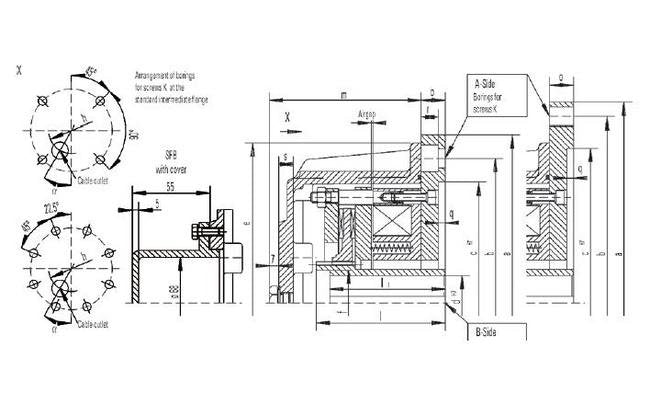

Specifications Length E
400 mm
Specifications Length H
244 mm
Specifications Length L
142 mm
Specifications Length L1
142 mm
Specifications Length M
169 mm
Specifications Length S
14 mm
Specifications Manufacturer
Pintsch Bubenzer
Specifications Maximum Airgap Brake Off
1.4 mm
Specifications Maximum Speed
4700 min-1
Specifications Minimum Airgap Brake Off
0.4 mm
Specifications Nominal Current 20 C
2.0 A
Specifications Nominal Power 20 C
220 W
Specifications Nominal Voltage Dc 20 C
110 V
Specifications Rough Bore Diameter
36 mm
Specifications Standard Bore Diameters
48 mm | 55 mm | 60 mm

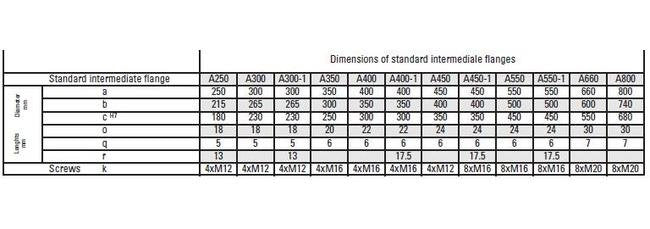

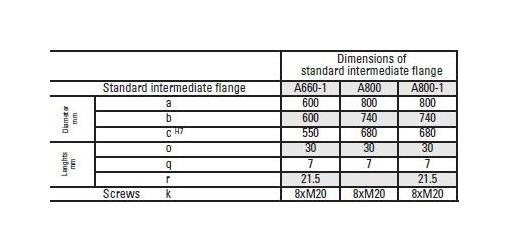

Specifications Suitable Standards Intermediate Flanges
A400-1 | A450 | A550
Specifications Weight
74 kg
