Enhance safety and performance with Pintsch Bubenzer SFB Electric Brakes. Featuring high work capacity, wear resistance, and IP67 protection, these brakes are designed for reliability and ease of use.
Regular price
$849.00
Regular price
Sale price
$849.00
Unit price
per
Initiate Order
Pintsch Bubenzer SFB Electric Brakes
$849.00
Quantity: 1
Claim Your Seller Account
Pintsch Bubenzer SFB Electric Brakes
$849.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Pintsch Bubenzer SFB Electric Brakes are designed for optimal safety and performance. With a dynamic torque rating of 100 Nm, 63 Nm, and 80 Nm, these brakes offer high work capacity and wear resistance due to their high abrasion resistance. Featuring a spring applied safety brake, these brakes come with IP67 protection class ensuring durability and reliability. The single air gap adjustment provides double wear reserve, while the manual lifting screws offer functional ease of use. Built to meet rigorous standards, these brakes are suitable for a wide range of applications.
Product Specifications
Note 0
Keyways for keys acc. to DIN6885 BI.1, width accuracy P9. Protection IP67Alterations reserved without notice
Specifications Actuation
Spring Applied, Electric Release
Specifications Angle
15 º
Specifications Diameter B Side D H7 Maximal
40 mm
Specifications Dynamic Torque Rating
100 Nm | 63 Nm | 80 Nm
Specifications Inertia
0.0037 kg·m²

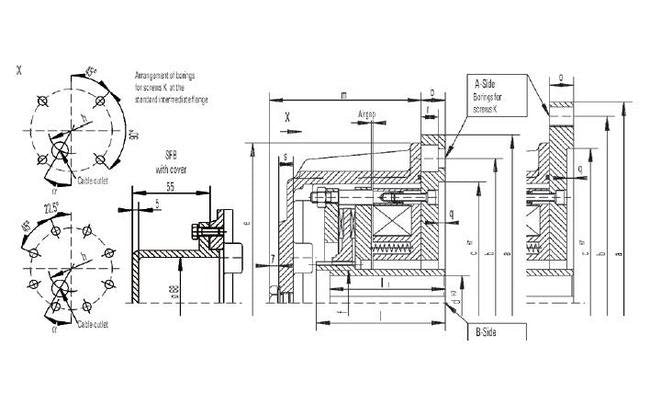

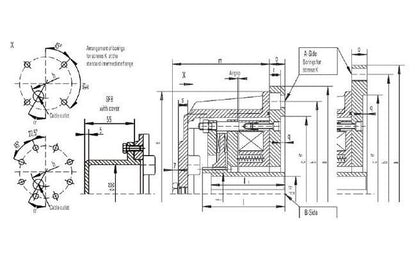

Specifications Length E
260 mm
Specifications Length H
180 mm
Specifications Length L
96 mm
Specifications Length L1
96 mm
Specifications Length M
118 mm
Specifications Length S
11 mm
Specifications Manufacturer
Pintsch Bubenzer
Specifications Maximum Airgap Brake Off
1.2 mm
Specifications Maximum Speed
6000 min-1
Specifications Minimum Airgap Brake Off
0.3 mm
Specifications Nominal Current 20 C
1.16 A
Specifications Nominal Power 20 C
128 W
Specifications Nominal Voltage Dc 20 C
110 V
Specifications Rough Bore Diameter
26 mm
Specifications Standard Bore Diameters
28 mm | 32 mm | 38 mm

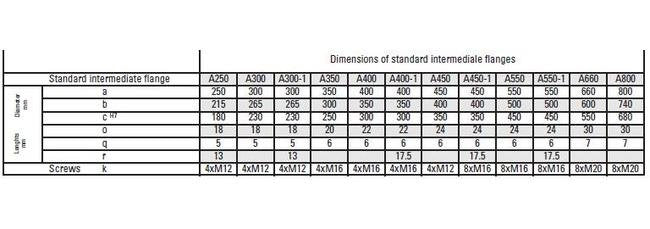

Specifications Suitable Standards Intermediate Flanges
A300 | A350
Specifications Weight
28 kg
