The Pintsch Bubenzer SFB Electric Brakes are designed for optimal safety and performance. With a dynamic torque rating ranging from 2650 Nm to 4000 Nm, these brakes offer high work capacity and wear resistance. Featuring a spring applied, electric release actuation system, these brakes provide double wear reserve through single air gap adjustment. With IP67 protection class and functional design without cover, these brakes ensure reliability in demanding environments. Manufactured by Pintsch Bubenzer, these brakes meet industry standards and come with keyways for keys according to DIN6885 BI.1.
Product Specifications
Note 0
Keyways for keys acc. to DIN6885 BI.1, width accuracy P9. Protection IP67Alterations reserved without notice
Specifications Actuation
Spring Applied, Electric Release
Specifications Angle
30 º
Specifications Diameter B Side D H7 Maximal
110 mm
Specifications Dynamic Torque Rating
2650 Nm | 3350 Nm | 4000 Nm
Specifications Inertia
0.3250 kg·m²

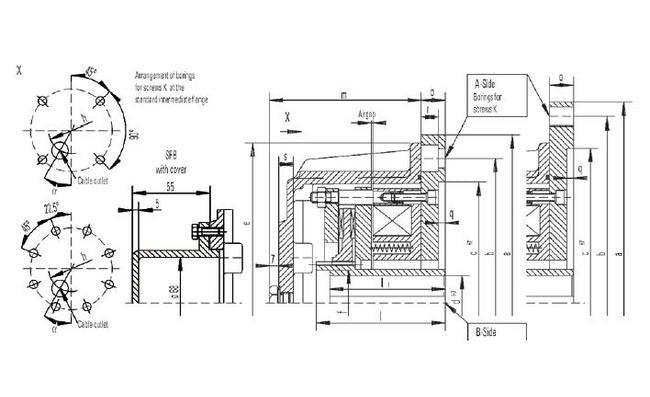

Specifications Length E
660 mm
Specifications Length F
128 mm
Specifications Length H
520 mm
Specifications Length L
191 mm
Specifications Length L1
171 mm
Specifications Length M
272 mm
Specifications Length S
15 mm
Specifications Manufacturer
Pintsch Bubenzer
Specifications Maximum Airgap Brake Off
2.5 mm
Specifications Maximum Speed
2500 min-1
Specifications Minimum Airgap Brake Off
0.4 mm
Specifications Nominal Current 20 C
5.03 A
Specifications Nominal Power 20 C
553 W
Specifications Nominal Voltage Dc 20 C
110 V
Specifications Rough Bore Diameter
46 mm
Specifications Standard Bore Diameters
65 mm | 70 mm | 75 mm | 80 mm | 90 mm

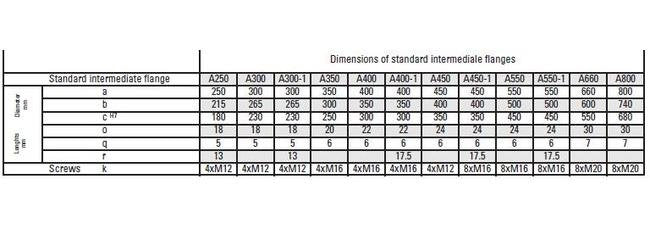

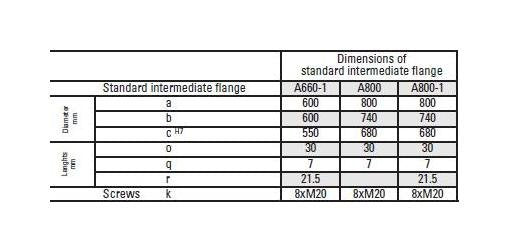

Specifications Suitable Standards Intermediate Flanges
A660-1
Specifications Weight
357 kg
