The Pintsch Bubenzer SFB Electric Brakes are designed with spring applied safety features, ensuring optimal protection with an IP67 rating. With adjustable air gaps for double wear reserve, these brakes offer high work capacity and wear resistance, ideal for demanding applications. Functional without cover, they feature specified torque ratings and meet stringent industry standards for institutional and government procurement.
Product Specifications
Note 0
Keyways for keys acc. to DIN6885 BI.1, width accuracy P9. Protection IP67Alterations reserved without notice
Specifications Actuation
Spring Applied, Electric Release
Specifications Angle
15 º
Specifications Diameter B Side D H7 Maximal
40 mm
Specifications Dynamic Torque Rating
45 Nm | 54 Nm | 63 Nm
Specifications Inertia
0.0017 kg·m²

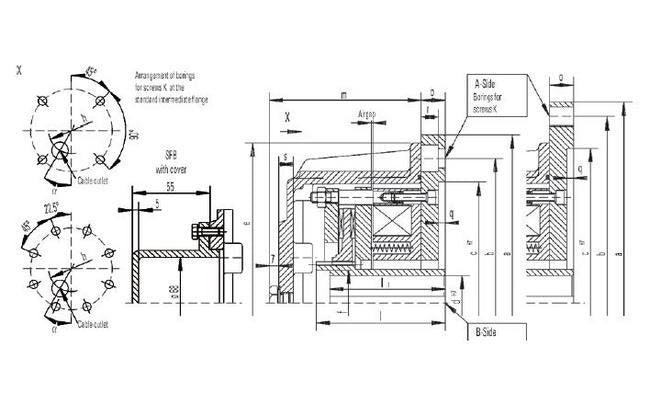

Specifications Length E
238 mm
Specifications Length H
150 mm
Specifications Length L
96 mm
Specifications Length L1
96 mm
Specifications Length M
115 mm
Specifications Length S
11 mm
Specifications Manufacturer
Pintsch Bubenzer
Specifications Maximum Airgap Brake Off
0.9 mm
Specifications Maximum Speed
6000 min-1
Specifications Minimum Airgap Brake Off
0.3 mm
Specifications Nominal Current 20 C
0.90 A
Specifications Nominal Power 20 C
99 W
Specifications Nominal Voltage Dc 20 C
110 V
Specifications Rough Bore Diameter
26 mm
Specifications Standard Bore Diameters
28 mm | 32 mm | 38 mm

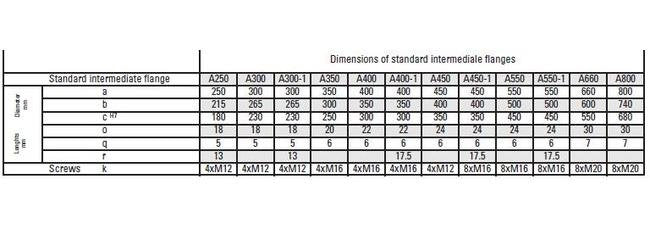

Specifications Suitable Standards Intermediate Flanges
A250 | A300
Specifications Weight
19 kg
