The Pintsch Bubenzer SFB Electric Brakes are designed for optimal safety and performance in industrial applications. Featuring a spring-applied safety brake with IP67 protection, these brakes offer double wear reserve through single air gap adjustment, ensuring high work capacity and wear resistance. With a Dynamic Torque Rating ranging from 400 Nm to 630 Nm, these brakes are functional without a cover and include screws for manual lifting. Ideal for heavy-duty environments, these brakes prioritize safety and durability.
Product Specifications
Note 0
Keyways for keys acc. to DIN6885 BI.1, width accuracy P9. Protection IP67Alterations reserved without notice
Specifications Actuation
Spring Applied, Electric Release
Specifications Angle
30 º
Specifications Diameter B Side D H7 Maximal
75 mm
Specifications Dynamic Torque Rating
400 Nm | 520 Nm | 630 Nm
Specifications Inertia
0.0360 kg·m²

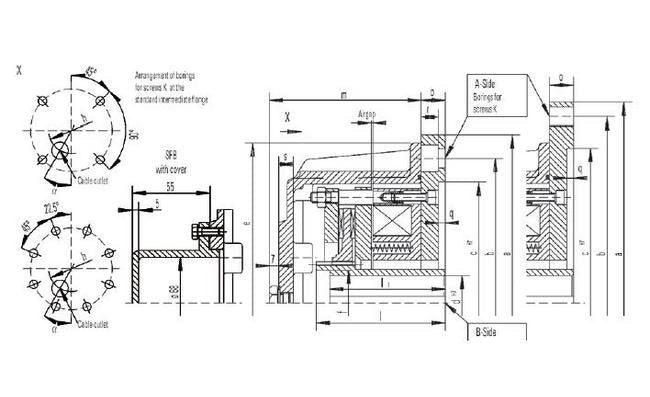

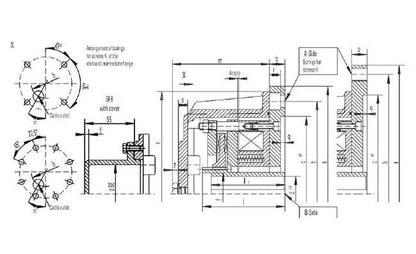

Specifications Length E
440 mm
Specifications Length F
95 mm
Specifications Length H
292 mm
Specifications Length L
148 mm
Specifications Length L1
142 mm
Specifications Length M
171 mm
Specifications Length S
15 mm
Specifications Manufacturer
Pintsch Bubenzer
Specifications Maximum Airgap Brake Off
1.8 mm
Specifications Maximum Speed
4000 min-1
Specifications Minimum Airgap Brake Off
0.4 mm
Specifications Nominal Current 20 C
2.79 A
Specifications Nominal Power 20 C
307 W
Specifications Nominal Voltage Dc 20 C
110 V
Specifications Rough Bore Diameter
36 mm
Specifications Standard Bore Diameters
60 mm | 65 mm | 75 mm

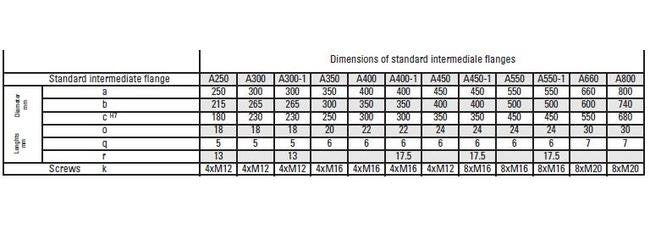

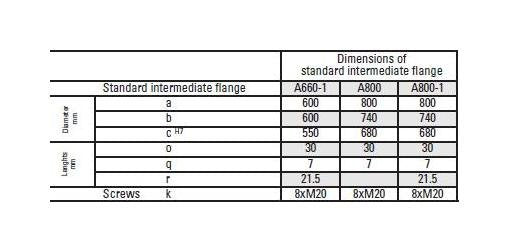

Specifications Suitable Standards Intermediate Flanges
A450-1 | A550 | A660
Specifications Weight
106 kg
