The Pintsch Bubenzer SFB Electric Safety Brakes are designed for optimal safety and performance in industrial applications. Featuring a spring-applied design with electric release, these brakes offer unparalleled protection with an IP67 protection class. With adjustable air gaps for double wear reserve, high work capacity, and exceptional wear resistance, these brakes ensure reliable functionality even without a cover. Manufactured by Pintsch Bubenzer, a trusted name in the industry, these brakes meet stringent quality standards and are suitable for a range of bore diameters.
Product Specifications
Note 0
Keyways for keys acc. to DIN6885 BI.1, width accuracy P9. Protection IP67Alterations reserved without notice
Specifications Actuation
Spring Applied, Electric Release
Specifications Angle
22.5 º
Specifications Diameter B Side D H7 Maximal
55 mm
Specifications Dynamic Torque Rating
180 Nm | 210 Nm | 250 Nm
Specifications Inertia
0.0068 kg·m²

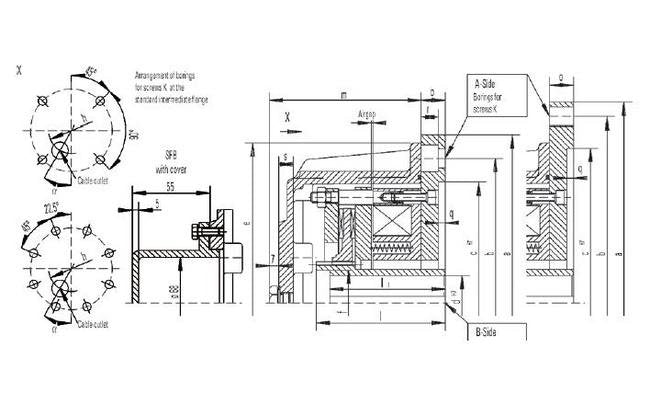

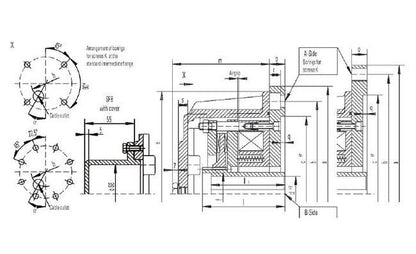

Specifications Length E
318 mm
Specifications Length H
214 mm
Specifications Length L
117 mm
Specifications Length L1
117 mm
Specifications Length M
143 mm
Specifications Length S
12 mm
Specifications Manufacturer
Pintsch Bubenzer
Specifications Maximum Airgap Brake Off
1.3 mm
Specifications Maximum Speed
5500 min-1
Specifications Minimum Airgap Brake Off
0.4 mm
Specifications Nominal Current 20 C
1.78 A
Specifications Nominal Power 20 C
196 W
Specifications Nominal Voltage Dc 20 C
110 V
Specifications Rough Bore Diameter
36 mm
Specifications Standard Bore Diameters
38 mm | 42 mm | 48 mm | 55 mm

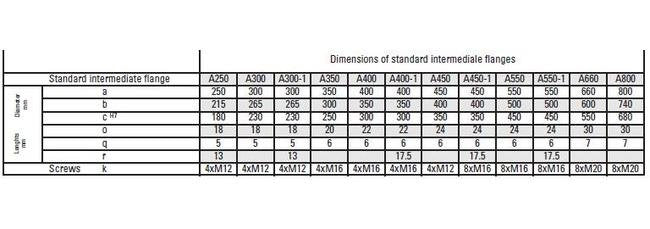

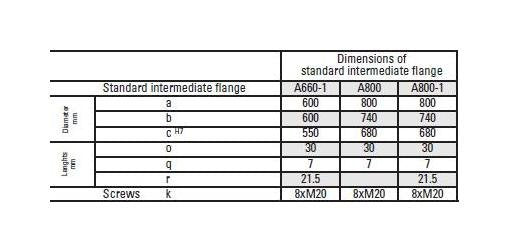

Specifications Suitable Standards Intermediate Flanges
A350 | A400 | A450
Specifications Weight
55 kg
