Pintsch Bubenzer SFB Electric Safety Brakes
Pintsch Bubenzer SFB Electric Safety Brakes
SKU:CLU-6fe65f
High-performance electric safety brakes with adjustable air gap and IP67 protection for industrial applications.
Regular price
$3,850.00
Regular price
Sale price
$3,850.00
Unit price
per
Initiate Order
Pintsch Bubenzer SFB Electric Safety Brakes
$3,850.00
Quantity: 1
Claim Your Seller Account
Pintsch Bubenzer SFB Electric Safety Brakes
$3,850.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Pintsch Bubenzer SFB Electric Safety Brakes are designed for optimal safety and performance, featuring a spring-applied mechanism for secure braking. With a dynamic torque rating ranging from 4200 Nm to 6300 Nm, these brakes offer high work capacity and wear resistance. The IP67 protection class ensures durability in diverse environments, while the adjustable air gap provides double wear reserve. Manufactured by Pintsch Bubenzer, these brakes meet stringent industry standards for reliable operation and are suitable for various applications.
Product Specifications
Note 0
Keyways for keys acc. to DIN6885 BI.1, width accuracy P9. Protection IP67Alterations reserved without notice
Specifications Actuation
Spring Applied, Electric Release
Specifications Angle
30 º
Specifications Diameter B Side D H7 Maximal
125 mm
Specifications Dynamic Torque Rating
4200 Nm | 5250 Nm | 6300 Nm
Specifications Inertia
0.3750 kg·m²

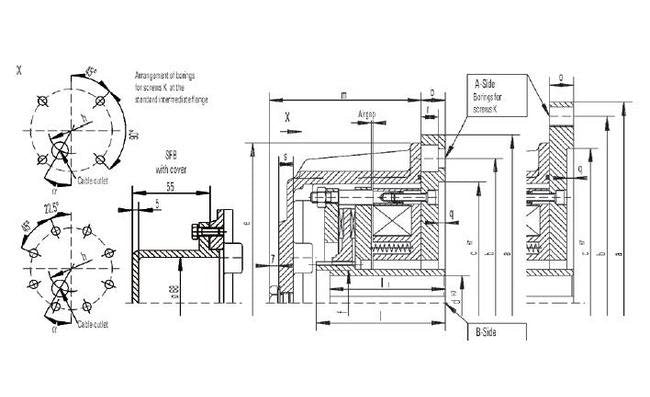

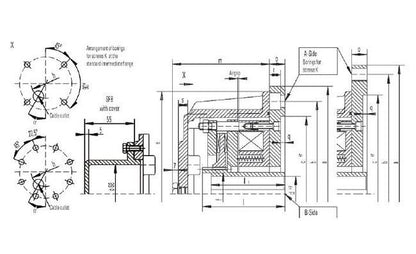

Specifications Length E
700 mm
Specifications Length F
140 mm
Specifications Length H
570 mm
Specifications Length L
237 mm
Specifications Length L1
210 mm
Specifications Length M
310 mm
Specifications Length S
15 mm
Specifications Manufacturer
Pintsch Bubenzer
Specifications Maximum Airgap Brake Off
2.8 mm
Specifications Maximum Speed
2200 min-1
Specifications Minimum Airgap Brake Off
0.7 mm
Specifications Nominal Current 20 C
6.10 A
Specifications Nominal Power 20 C
671 W
Specifications Nominal Voltage Dc 20 C
110 V
Specifications Rough Bore Diameter
58 mm
Specifications Standard Bore Diameters
100 mm

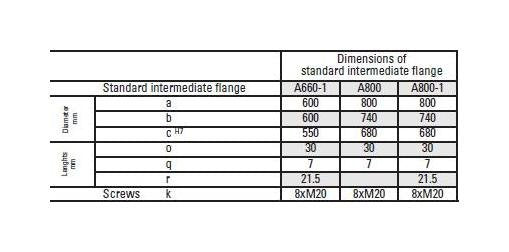

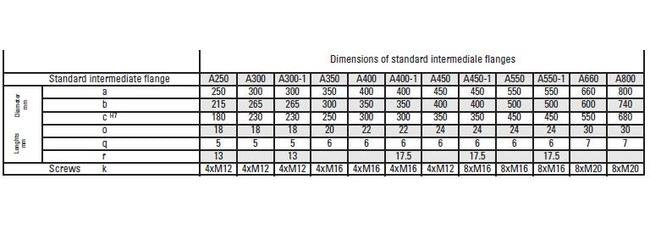

Specifications Suitable Standards Intermediate Flanges
A800
Specifications Weight
500 kg
