Pintsch Bubenzer SFB Electric Safety Brakes
Pintsch Bubenzer SFB Electric Safety Brakes
SKU:CLU-714c88
Enhance safety and performance with Pintsch Bubenzer SFB Electric Safety Brakes. Dynamic torque rating of 10000 Nm and IP67 protection for reliability and durability.
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
Pintsch Bubenzer SFB Electric Safety Brakes
$5,899.99
Quantity: 1
Claim Your Seller Account
Pintsch Bubenzer SFB Electric Safety Brakes
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Pintsch Bubenzer SFB Electric Safety Brakes are engineered with a spring applied mechanism for enhanced safety. With a dynamic torque rating of 10000 Nm, these brakes offer high work capacity and wear resistance to meet the demands of complex industrial operations. Featuring IP67 protection class and adjustable air gaps, these brakes ensure reliable and functional performance in challenging environments. Manufactured by Pintsch Bubenzer, these brakes adhere to stringent standards for durability and efficiency, making them ideal for institutional and government procurement needs.
Product Specifications
Note 0
Keyways for keys acc. to DIN6885 BI.1, width accuracy P9. Protection IP67Alterations reserved without notice
Specifications Actuation
Spring Applied, Electric Release
Specifications Angle
30 º
Specifications Diameter B Side D H7 Maximal
140 mm
Specifications Dynamic Torque Rating
10000 Nm | 7000 Nm | 8500 Nm
Specifications Inertia
1.0070 kg·m²
Specifications Length E
795 mm
Specifications Length F
155 mm
Specifications Length H
620 mm
Specifications Length L
282 mm
Specifications Length L1
255 mm
Specifications Length M
310 mm
Specifications Length S
15 mm
Specifications Manufacturer
Pintsch Bubenzer
Specifications Maximum Airgap Brake Off
3.1 mm
Specifications Maximum Speed
2000 min-1
Specifications Minimum Airgap Brake Off
0.7 mm
Specifications Nominal Current 20 C
8.91 A
Specifications Nominal Power 20 C
980 W
Specifications Nominal Voltage Dc 20 C
110 V
Specifications Rough Bore Diameter
68 mm
Specifications Standard Bore Diameters
125 mm

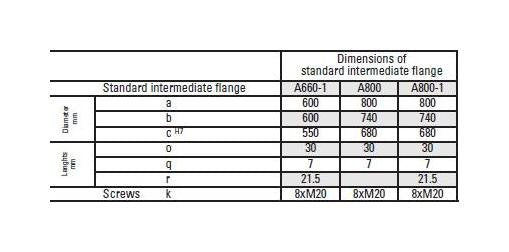

Specifications Suitable Standards Intermediate Flanges
A800-1
Specifications Weight
750 kg
