Pintsch Bubenzer SFB Electric Safety Brakes

Pintsch Bubenzer SFB Electric Safety Brakes

CLU-07c0bf

Enhance safety in your operations with the Pintsch Bubenzer SFB Electric Safety Brakes, offering high torque, wear resistance, and maintenance convenience.

$3,499.99
$3,499.99
Sale

Initiate Order

Pintsch Bubenzer SFB Electric Safety Brakes

Pintsch Bubenzer SFB Electric Safety Brakes

$3,499.99

Quantity: 1

Claim Your Seller Account

Pintsch Bubenzer SFB Electric Safety Brakes

Pintsch Bubenzer SFB Electric Safety Brakes

$3,499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Pintsch Bubenzer SFB Electric Safety Brakes provide unmatched safety and precision for industrial applications. With a Dynamic Torque Rating of 1650-2500 Nm, these brakes offer exceptional performance and high wear resistance. Featuring a spring-applied design with electric release, they ensure reliable functionality without a cover, making maintenance hassle-free. Manufactured by Pintsch Bubenzer, these brakes meet stringent industry standards for durability and efficiency.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note 0
Keyways for keys acc. to DIN6885 BI.1, width accuracy P9. Protection IP67Alterations reserved without notice
Specifications Actuation
Spring Applied, Electric Release
Specifications Angle
45 º
Specifications Diameter B Side D H7 Maximal
110 mm
Specifications Dynamic Torque Rating
1650 Nm | 2100 Nm | 2500 Nm
Specifications Inertia
0.1400 kg·m²
Specifications Length E
556 mm
Specifications Length F
128 mm
Specifications Length H
440 mm
Specifications Length L
191 mm
Specifications Length L1
171 mm
Specifications Length M
232 mm
Specifications Length S
15 mm
Specifications Manufacturer
Pintsch Bubenzer
Specifications Maximum Airgap Brake Off
2.5 mm
Specifications Maximum Speed
2800 min-1
Specifications Minimum Airgap Brake Off
0.4 mm
Specifications Nominal Current 20 C
4.50 A
Specifications Nominal Power 20 C
495 W
Specifications Nominal Voltage Dc 20 C
110 V
Specifications Rough Bore Diameter
46 mm
Specifications Standard Bore Diameters
65 mm | 70 mm | 75 mm | 80 mm

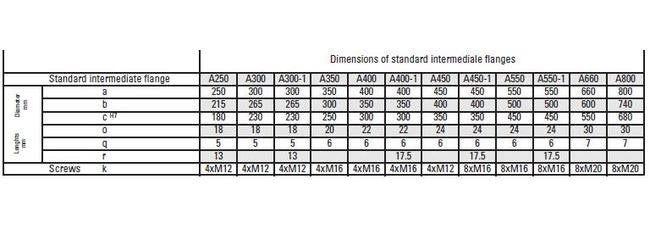

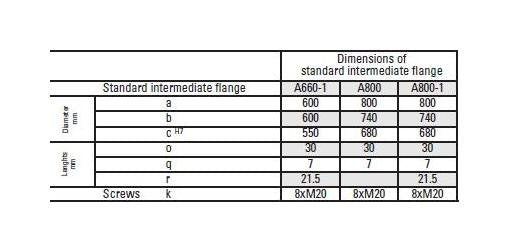

Specifications Suitable Standards Intermediate Flanges
A660 | A800
Specifications Weight
306 kg
