Pintsch Bubenzer SFB Electric Safety Brakes
Pintsch Bubenzer SFB Electric Safety Brakes
SKU:CLU-891be9
High-performance electric safety brakes with spring applied design, ideal for heavy-duty applications. Double wear reserve, functional without cover, manufactured by Pintsch Bubenzer.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Pintsch Bubenzer SFB Electric Safety Brakes
$2,899.99
Quantity: 1
Claim Your Seller Account
Pintsch Bubenzer SFB Electric Safety Brakes
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Pintsch Bubenzer SFB Electric Safety Brakes are meticulously designed for optimal performance and reliability. With a Dynamic Torque Rating of 1000 Nm, 660 Nm, and 830 Nm, these brakes offer high work capacity and wear resistance, making them suitable for demanding applications. Featuring a spring applied design with electric release, they ensure seamless functionality without a cover, offering double wear reserve by single air gap adjustment. Manufactured by Pintsch Bubenzer, these brakes meet suitable standards like A450-1, A550, and A660, offering unmatched durability and precision.

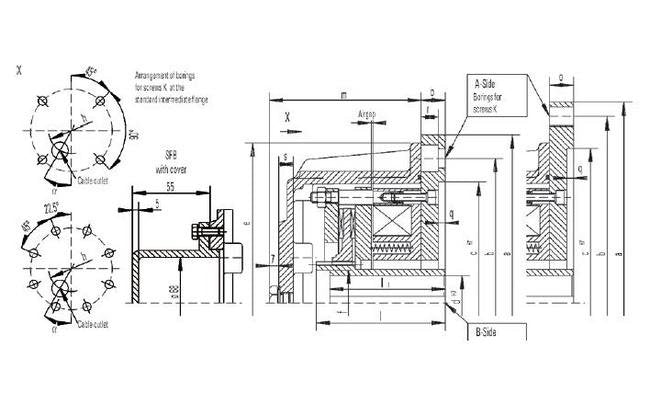

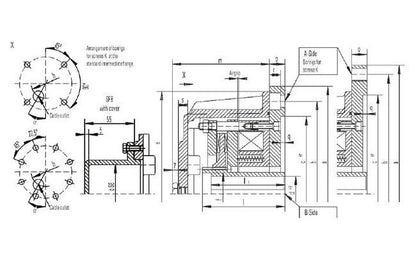

Product Specifications
Note 0
Keyways for keys acc. to DIN6885 BI.1, width accuracy P9. Protection IP67Alterations reserved without notice
Specifications Actuation
Spring Applied, Electric Release
Specifications Angle
30 º
Specifications Diameter B Side D H7 Maximal
75 mm
Specifications Dynamic Torque Rating
1000 Nm | 660 Nm | 830 Nm
Specifications Inertia
0.0500 kg·m²
Specifications Length E
446 mm
Specifications Length F
95 mm
Specifications Length H
330 mm
Specifications Length L
148 mm
Specifications Length L1
142 mm
Specifications Length M
183 mm
Specifications Length S
15 mm
Specifications Manufacturer
Pintsch Bubenzer
Specifications Maximum Airgap Brake Off
1.8 mm
Specifications Maximum Speed
3600 min-1
Specifications Minimum Airgap Brake Off
0.6 mm
Specifications Nominal Current 20 C
3.13 A
Specifications Nominal Power 20 C
344 W
Specifications Nominal Voltage Dc 20 C
110 V
Specifications Rough Bore Diameter
36 mm
Specifications Standard Bore Diameters
60 mm | 65 mm | 75 mm

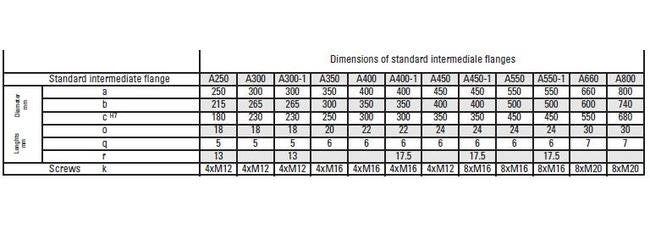

Specifications Suitable Standards Intermediate Flanges
A450-1 | A550 | A660
Specifications Weight
168 kg
