Pintsch Bubenzer SFB Electric Spring Applied Brakes
Pintsch Bubenzer SFB Electric Spring Applied Brakes
SKU:CLU-ba8a71
Reliable Pintsch Bubenzer SFB Electric Spring Applied Brakes with high work capacity, wear resistance, and IP67 protection. Dynamic torque ratings of 1050-1600 Nm.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Pintsch Bubenzer SFB Electric Spring Applied Brakes
$2,999.99
Quantity: 1
Claim Your Seller Account
Pintsch Bubenzer SFB Electric Spring Applied Brakes
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Pintsch Bubenzer SFB Electric Spring Applied Brakes are designed with a spring applied safety brake for reliable protection. With an IP67 protection-class, these brakes offer high work capacity and wear resistance. Featuring double wear reserve through single air gap adjustment, these brakes are functional without cover and include screws for manual lifting. With dynamic torque ratings of 1050 Nm, 1300 Nm, and 1600 Nm, and compliant with key industry standards like DIN6885 BI.1, these brakes ensure top performance and safety in various industrial applications.
Product Specifications
Note 0
Keyways for keys acc. to DIN6885 BI.1, width accuracy P9. Protection IP67Alterations reserved without notice
Specifications Actuation
Spring Applied, Electric Release
Specifications Angle
30 º
Specifications Diameter B Side D H7 Maximal
110 mm
Specifications Dynamic Torque Rating
1050 Nm | 1300 Nm | 1600 Nm
Specifications Inertia
0.1280 kg·m²
Specifications Length E
540 mm
Specifications Length F
128 mm
Specifications Length H
394 mm
Specifications Length L
191 mm
Specifications Length L1
171 mm
Specifications Length M
211 mm
Specifications Length S
15 mm
Specifications Manufacturer
Pintsch Bubenzer
Specifications Maximum Airgap Brake Off
2.3 mm
Specifications Maximum Speed
3200 min-1
Specifications Minimum Airgap Brake Off
0.4 mm
Specifications Nominal Current 20 C
3.95 A
Specifications Nominal Power 20 C
435 W
Specifications Nominal Voltage Dc 20 C
110 V
Specifications Rough Bore Diameter
46 mm
Specifications Standard Bore Diameters
65 mm | 70 mm | 75 mm | 80 mm

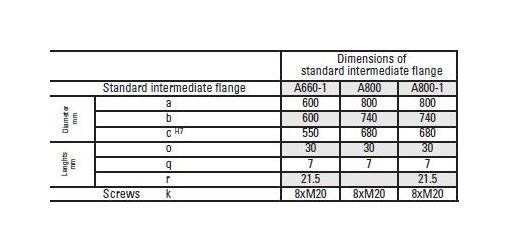

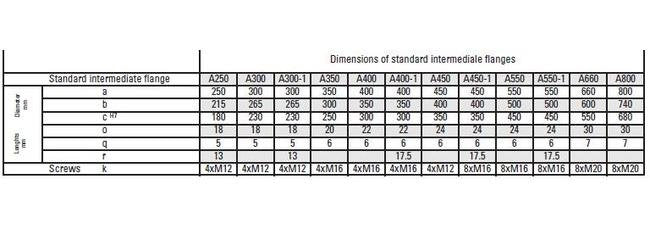

Specifications Suitable Standards Intermediate Flanges
A550-1 | A660 | A800
Specifications Weight
242 kg
