PITC Series 10-32 Male Brass Pressure Indicator
PITC Series 10-32 Male Brass Pressure Indicator
SKU:PRE-383fbf
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
PITC Series 10-32 Male Brass Pressure Indicator
$49.99
Quantity: 1
Claim Your Seller Account
PITC Series 10-32 Male Brass Pressure Indicator
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

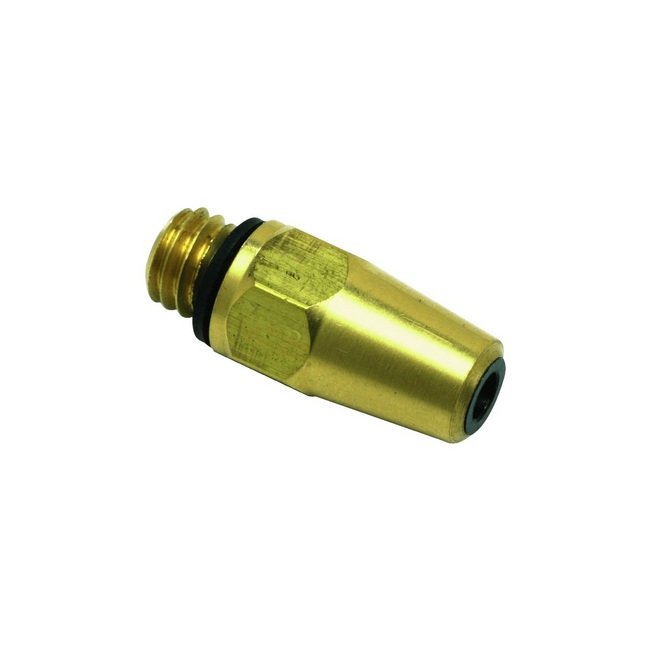

Single pin 5/32" bore pressure indicator made of Brass. When the white pin is extended, the indicator is on. This is a direct mount with male threads of 10-32 UNF and requires a 1/8" NPT mounting hole. The maximum input pressure is 150 psi and is recommended for air only. The minimum actuation pressure is approximately 12 psi. The hex is 1/4". 40-micron filtration is recommended.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note
If you do not see exactly what you are looking for, please contact our sales department.
Technical Specs Bore Size
5/32 in
Technical Specs Hex Size
1/4 in
Technical Specs Material
Brass
Technical Specs Mounting Hole Diameter
1/8 in
Technical Specs Mounting Hole Thread
National Pipe Thread (NPT)
Technical Specs Series
PITC
Technical Specs Thread Size
10-32
