Placid Industries Ultrasonic Sensor
Placid Industries Ultrasonic Sensor
SKU:ULT-60c3a3
Maintain precise tension control with the Placid Industries Ultrasonic Sensor. Voltage range: 0-20V, Distance range: 3.9-39.3 inches, Temperature range: 14-150°F. IP67 protection.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Placid Industries Ultrasonic Sensor
$349.99
Quantity: 1
Claim Your Seller Account
Placid Industries Ultrasonic Sensor
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

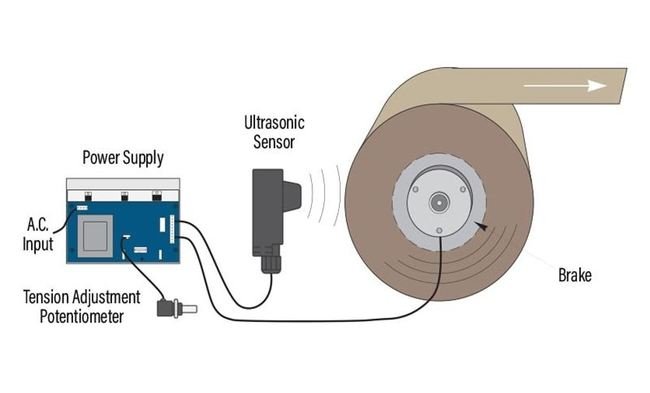

The Placid Industries Ultrasonic Sensor is a precision instrument designed to maintain consistent tension in industrial processes. With a voltage range of 0-20 V and a distance range of 3.9 to 39.3 inches, this sensor ensures accurate measurement and control. It automatically adjusts torque as roll sizes change, keeping tension steady. Operating in temperatures from 14 to 150 °F, this sensor's IP67 protection ensures durability. Ideal for brake and clutch applications, it provides reliable tension control by measuring distances using ultrasonic pulses.
Product Specifications
Specifications Direct Current Dc Input Voltage
15 to 30 V
Specifications Direct Current Dc Output Voltage
0 to 20 V
Specifications Maximum Direct Current Dc Input Voltage
35 mA
Specifications Maximum Direct Current Dc Output Voltage
20 mA
Specifications Protection Loss
IP67 (Sealed Plastic Case)
Specifications Range
3.9 to 39.3 in | 100 to 1000 mm
Specifications Repeatability
0.02 in | <0.5 mm
Specifications Resolution
0.012 in | <0.3 mm
Specifications Temperature
14 to 150 ºF | -10 to 60 ºC
