Plastic Rivet Chassis Mount for Circuit Board Supports

Name: Plastic Rivet Chassis Mount for Circuit Board Supports
Brand: All Electronics Hardware
SKU: 01C-4bff53
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-4bff53

Secure and releaseable Plastic Rivet Chassis Mount for circuit board supports. Made of Nylon 66, UL94V-2 material. Suitable for PCB thicknesses .062-.341 inches.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

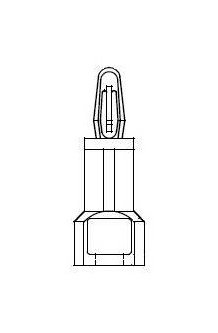

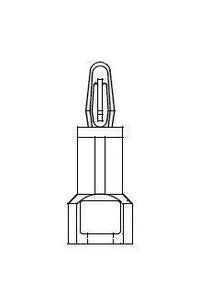

The 61 Series Plastic Rivet Chassis Mount is a secure and releaseable circuit board support solution designed for easy installation on chassis. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this component supports PCB thicknesses from .062 up to .341 inches. It operates within a temperature range of -40 to 185F (-40 to 85C), ensuring durability in various environments. Compatible with AEH Snap Rivet (sold separately), this mount offers versatility and interchangeability across all 01-61 sizes.

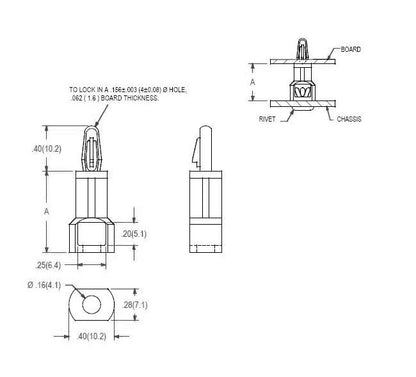

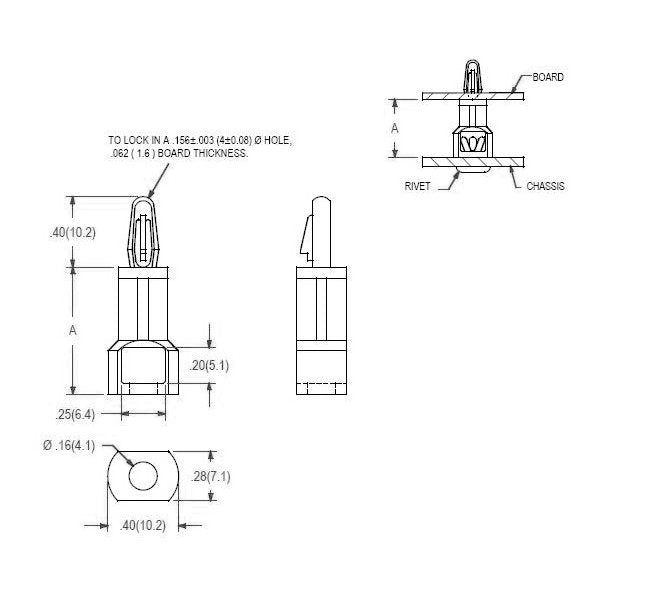

Product Specifications

Specifications Chassis Thickness Range Available Min Max

.026 - .341 (.7-8.7) inches (mm)

Specifications Dim A

.875 (22.2) inches (mm)

Specifications Use Aeh Snap Rivet06 01 Series Sold Separately

Download Datasheet(PDF) to Choose Snap Rivet According to Chassis Thickness - All Rivets are interchangeable with all 01-61 Sizes inches (mm)
