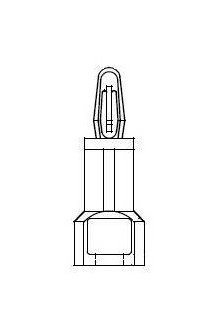

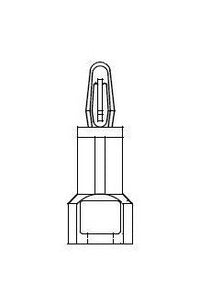

Plastic Rivet Chassis Mount for Circuit Board Supports
Plastic Rivet Chassis Mount for Circuit Board Supports
SKU:01C-84872f
Secure and releaseable circuit board support chassis mount for .156 board holes. Nylon 66 material, -40 to 185F temp range. RoHS compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Plastic Rivet Chassis Mount for Circuit Board Supports
$49.99
Quantity: 1
Claim Your Seller Account
Plastic Rivet Chassis Mount for Circuit Board Supports
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your PCB installations with the 61 Series Plastic Rivet Chassis Mount. It offers a secure locking mechanism, suitable for .156 board holes, facilitating easy release when needed. Constructed from Nylon 66 UL94V-2 material, this mount ensures a reliable and durable support solution. With a temperature range of -40 to 185F, this mount is versatile and RoHS compliant, meeting industry standards for safety and environmental regulations.
Product Specifications

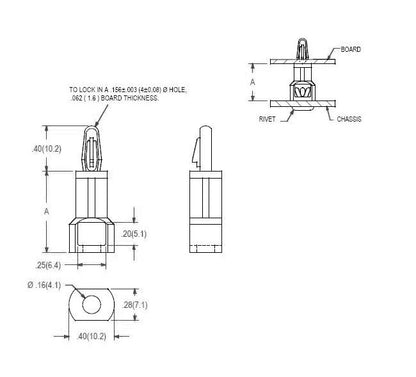

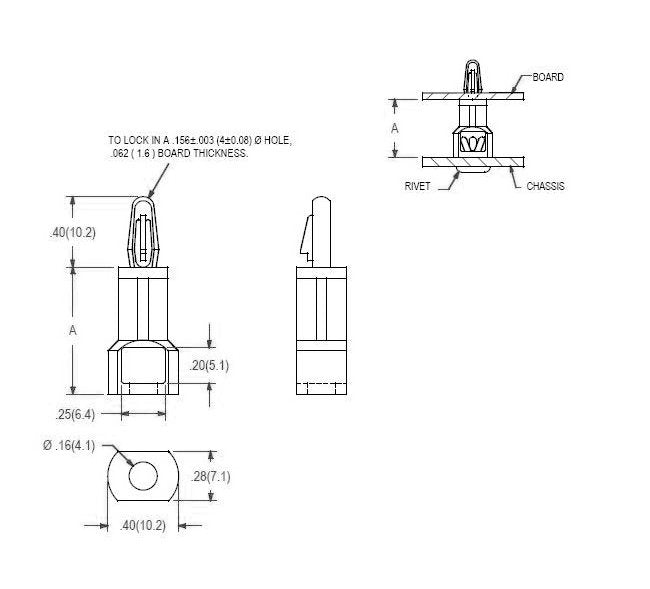

Specifications Chassis Thickness Range Available Min Max
.026 - .341 (.7-8.7) inches (mm)
Specifications Dim A
.437 (11.1) inches (mm)
Specifications Use Aeh Snap Rivet06 01 Series Sold Separately
Download Datasheet(PDF) to Choose Snap Rivet According to Chassis Thickness - All Rivets are interchangeable with all 01-61 Sizes inches (mm)
