Platinum RTD Temperature Sensor P1K0.520.6W.Y.010
Platinum RTD Temperature Sensor P1K0.520.6W.Y.010
SKU:TEM-63dbd1
High-precision Platinum RTD Temperature Sensor for -200 to +600 ºC. RoHS compliant, ideal for accurate temperature measurement.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Platinum RTD Temperature Sensor P1K0.520.6W.Y.010
$29.99
Quantity: 1
Claim Your Seller Account
Platinum RTD Temperature Sensor P1K0.520.6W.Y.010
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

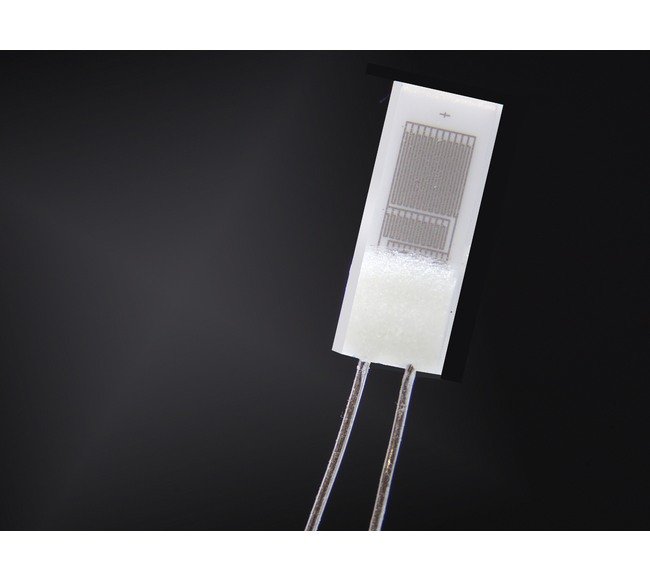

The Platinum RTD Temperature Sensor P1K0.520.6W.Y.010 is a high-quality thin-film platinum 1000 Ohm RTD component designed for precise temperature measurement in a wide range from -200 to +600 ºC. Manufactured by Innovative Sensor Technology, USA Division, this sensor ensures accurate monitoring with a Temperature Coefficient of Resistance (TCR) of 3850 ppm/K and a tight tolerance of 1/3 IEC 60751 F0.1 (Class Y). With RoHS compliance, this sensor meets stringent environmental standards while its platinum/nickel wire construction ensures reliability. Dimensions: 5.0mm x 2.0mm x 1.3mm.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Height
1.3 mm
Dimensions Length
5.0 mm
Dimensions Width
2.0 mm
Specifications Manufacturer Part Number
P1K0.520.6W.Y.010
Specifications Resistivity At 0 Degree Celsius C Temperature
1000 Ω
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Coefficient Of Resistance Tcr
3850 ppm/K
Specifications Temperature Range
-200 to +600 ºC
Specifications Tolerance
1/3 International Electrotechnical Commission (IEC) 60751 F0.1 (Class Y)
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Platinum (Pt)/Nickel (Ni)
