PLG Series 312.5 Gearbox with Up to 14 N·m Torque
PLG Series 312.5 Gearbox with Up to 14 N·m Torque
SKU:PLG-cff262
High-torque PLG Series 312.5 Gearbox for industrial efficiency and compact design.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
PLG Series 312.5 Gearbox with Up to 14 N·m Torque
$249.99
Quantity: 1
Claim Your Seller Account
PLG Series 312.5 Gearbox with Up to 14 N·m Torque
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

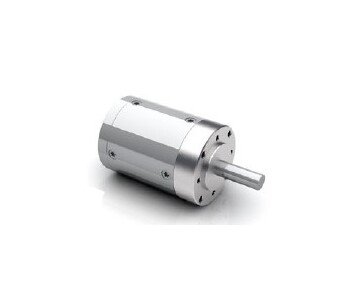

The PLG Series 312.5 Gearbox delivers exceptional performance with a compact design and high torque capacity. Featuring a reduction ratio of 312.5 and continuous torque up to 14 N·m, this gearbox is ideal for industrial applications. With straight toothing, dual ball bearings, and high efficiency of 73%, it ensures reliable operation. Built with steel ring gear and offering protection up to IP50, this gearbox is maintenance-free and suitable for various material combinations. It meets the highest continuous torque standards while maintaining a lightweight construction.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Lifetime lubricationFood grade lubricationLow temperatureHigh efficiencyHigh torqueSpecial surface availableVibration resistance
Technical Specs Axial Load
150 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
0 to 14 N·m
Technical Specs Efficiency
73 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
3
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Up to Ingress Protection (IP50)
Technical Specs Radial Load
250 N
Technical Specs Reduction Ratio
312.5
Technical Specs Ring Gear Material
Steel
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.47 kg
