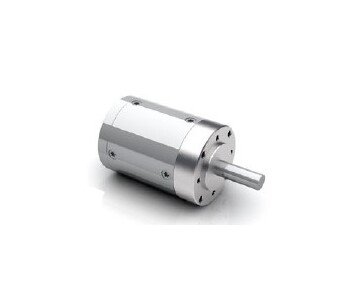

PLG Series 400 Planetary Gearbox
PLG Series 400 Planetary Gearbox
SKU:PLG-eb491d
Compact and powerful PLG Series 400 Planetary Gearbox with up to 14 N·m torque, steel ring gear, and 73% efficiency.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
PLG Series 400 Planetary Gearbox
$349.99
Quantity: 1
Claim Your Seller Account
PLG Series 400 Planetary Gearbox
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PLG Series 400 Planetary Gearbox offers unmatched continuous torque capacity up to 14 N·m, with a durable steel ring gear. Featuring a compact design, with lifetime lubrication and high efficiency of 73%, it is ideal for industrial applications requiring precision and reliability. With compliance to industry standards, this gearbox ensures optimal performance and longevity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Lifetime lubricationFood grade lubricationLow temperatureHigh efficiencyHigh torqueSpecial surface availableVibration resistance
Technical Specs Axial Load
150 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
0 to 14 N·m
Technical Specs Efficiency
73 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
3
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Up to Ingress Protection (IP50)
Technical Specs Radial Load
250 N
Technical Specs Reduction Ratio
400
Technical Specs Ring Gear Material
Steel
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.47 kg
