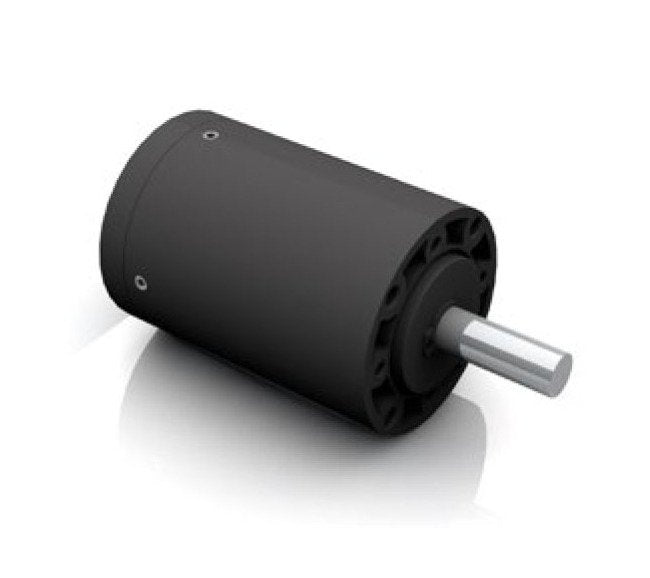

PLG Series 64 Reduction Ratio Gearbox
PLG Series 64 Reduction Ratio Gearbox
SKU:PLG-2c9335
Experience high-efficiency and durability with the Dunkermotoren PLG Series 64 Reduction Ratio Gearbox.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
PLG Series 64 Reduction Ratio Gearbox
$299.99
Quantity: 1
Claim Your Seller Account
PLG Series 64 Reduction Ratio Gearbox
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren PLG Series 64 Reduction Ratio Gearbox is a high-efficiency solution designed for superior performance. With a reduction ratio of 64 and a continuous torque of 1.3 N·m, this gearbox offers exceptional durability and reliability. Featuring a compact design, lifetime lubrication, and vibration resistance, it ensures seamless operation in diverse applications. Meeting institutional procurement standards, this gearbox is maintenance-free and boasts an efficiency of 81% along with Ingress Protection (IP50) for added durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Planetary gearboxes (PLG) have the highest continuous torque capacity of all types of gearbox; at the same time they have a very compact design, low weight and excellent gear efficiency of typically 97%. For our planetary gearboxes there are, depending on customer requirements, a variety of different materials combinable, whereby continuous torques reach up to 130 Nm, and ratios from 4:1 to 512:1 are available. The planetary gearboxes are maintenance-free.
Features Features
Lifetime lubricationVibration resistance
Technical Specs Axial Load
150 N
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Torque
1.3 N·m
Technical Specs Efficiency
81 %
Technical Specs Note For Axialradial Load
From center of shaft
Technical Specs Number Of Stages
2
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP50)
Technical Specs Radial Load
230 N
Technical Specs Reduction Ratio
64
Technical Specs Ring Gear Material
Plastic
Technical Specs Series
PLG
Technical Specs Weight Of Gearbox
0.2 kg
