Pluggable Type A Conveyor Temperature Sensor
Pluggable Type A Conveyor Temperature Sensor
SKU:TEM-de72e3
Precisely measure air and surface temperatures with the Pluggable Type A Conveyor Temperature Sensor for optimal process control.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
Pluggable Type A Conveyor Temperature Sensor
$159.99
Quantity: 1
Claim Your Seller Account
Pluggable Type A Conveyor Temperature Sensor
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

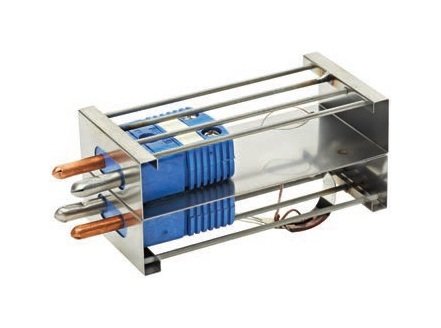

The Pluggable Type A Conveyor Temperature Sensor is a specialized device designed for measuring air temperature above conveyors and the conveyor surface temperature. This sensor, compatible with THB40 & THB50 Thermal Barriers, features a durable construction and precise sensing technology ideal for applications requiring quality assurance, process optimization, and food safety adherence. With Type T, J, and K thermocouple options, an operating temperature range of -50 to 350 ºC, and quick response time, this sensor ensures accurate monitoring and control of processing conditions.
Product Specifications
Additional Information

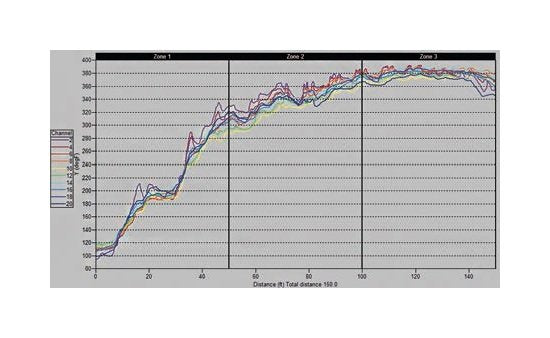

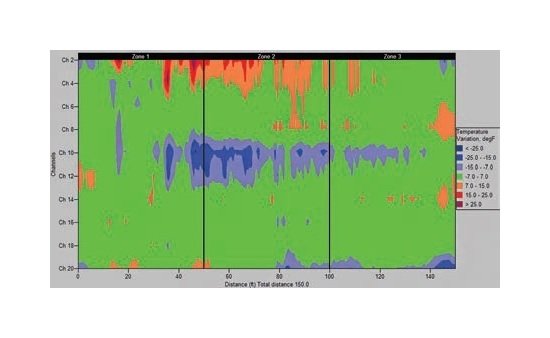

The tighter the pattern of lines the more even the temperature is across the width of the band. Visually, side-to-side variation is better displayed in a 2D Contour Graph, which in this example is showing greater than 28ºC (50ºF) band temperature variation; indicated by the hotter (red) left side and cooler (blue) center of the band.
Applications
Quality AssuranceRecord your processing conditions when your product quality is within specification. Save these profiles for future reference as "target" conditions. Use the SPC function included in the software to establish upper and lower control limits for your process temperature, air velocity, heat flux and humidity profiles.Line Start-upTake a SCORPION® 2 profile a few minutes before introducing product into a process. This is a good check that the process has reached the correct operating conditions before production is started.Product Consistency Line-to-LineCompare SCORPION® 2 profiles for two process ovens, perhaps in different factories, that are supposed to be making the same product.Commissioning and MaintenanceHeat process ovens usually include dampers and other controls that must be set by the installation engineer. Use SCORPION® 2 to check that these have been set correctly. Repeat the profiles as part of your preventative maintenance program to detect drift in zone conditions and to pin-point the cause of problems when they do occur.Analyze Equipment PerformanceMost oven manufacturers now use SCORPION® 2 to design their heat processes. This is an invaluable tool for design engineers to balance heat and airflow across the width and along the length of the process oven.Optimize Food Safety and ThroughputControlling internal food temperature is key to achieving food safety. Today's food processors must also document how they are meeting food safety requirements with data. The SCORPION® 2 Data Logging Measurement System makes both jobs easier.The SCORPION® 2 Data Logger with R&D Smart Sensor and Product Probes simplifies the measurement of environment temperature, airflow, energy transfer and internal product core temperature. Plus the SCORPION® 2 Software (SV8) calculates and displays the % kill for a specified pathogen reduction level.By combining this ease of measurement with robust data capture, the SCORPION® 2 System enables better process optimization. No other system makes achieving desired levels of food safety and throughput so simple.New Product DevelopmentUse SCORPION® 2 to record the processing conditions you develop in the lab or in a pilot plant. Then use SCORPION® 2 again to establish the same conditions as the new product is transferred to a full-scale production line.
Specifications Air Sensors
1
Specifications Contact Sensors
1
Specifications Pluggable Type
Type A
Technical Summary Accuracy
1.0 ºC | 1.8 ºF
Technical Summary Battery Running Time
50+ hour
Technical Summary Number Of Sensor Elements Channels
0 to 32
Technical Summary Operating Temperature Range
-50 to 350 ºC | -58 to 662 ºF
Technical Summary Optional Sensor Type
Type J Thermocouple | Type K Thermocouple
Technical Summary Resolution
0.025 ºC | 0.045 ºF
Technical Summary Sensor Type
Type T Thermocouple
