The PN 10 Cast Iron Vent Check Valve is a durable and reliable solution for fluid control systems. Constructed with a Cast Iron body, Stainless Steel seat, disc, and stem, this valve ensures longevity and performance. Equipped with a Handwheel actuator and Flanged Drilled connection according to DIN2501-PN10 standards, it facilitates easy operation and installation. Suitable for industrial applications, this valve guarantees leak-proof performance and efficient flow control.
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron

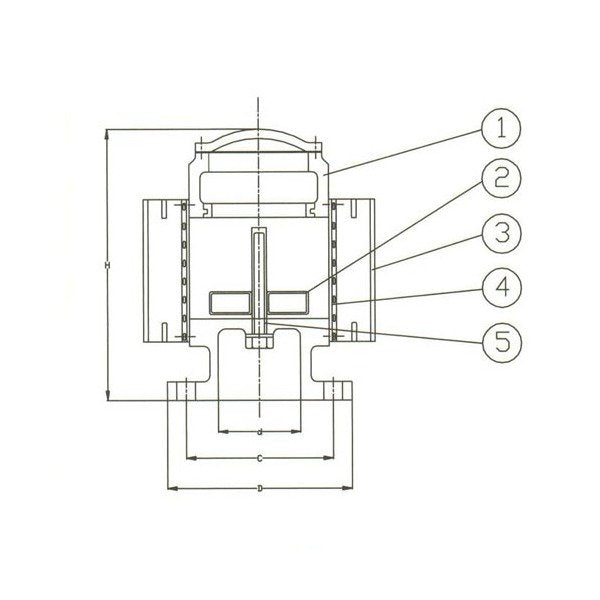

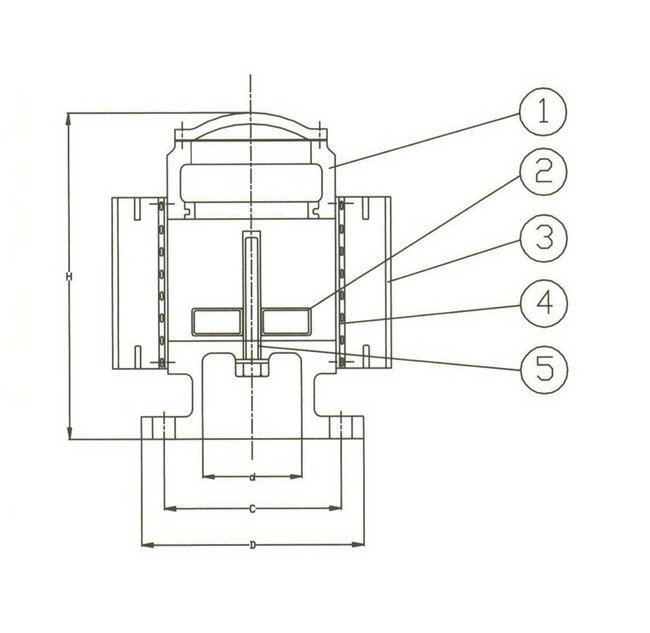

Specifications C
180 mm
Specifications Connection
Flanged Drilled
Specifications D
220 mm
Specifications Disc Material
Stainless Steel
Specifications H
231 mm
Specifications Hole Diameter
18 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
100
Specifications Stem Material
Stainless Steel
Specifications Weight
18.0 kg
